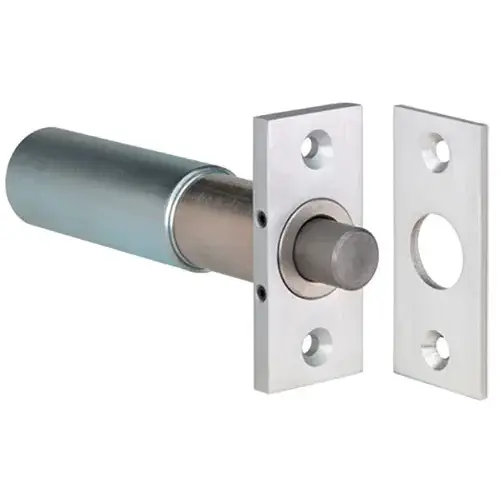

SDC 110IV Conventional Mortise Bolt Lock Less Auto Relock, Satin Aluminum Clear Anodized
Item #: 110IV by SDC
Brand: SDC
UPC #: 999566866130
See reviewsSee reviews
In Stock
$199.74
228.00 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 652 units available
Model: 110I Direct Throw Mortise Bolt Lock, Failsafe
110I Direct Throw Mortise Bolt Lock, Failsafe
160I Direct Throw Mortise Bolt Lock, Auto-Relock, Failsafe
180AI Direct Throw Surface Mount Bolt Lock, Failsafe
210H Direct Throw Mortise Bolt Lock, Failsecure
260H Direct Throw Mortise Bolt Lock, Auto-Relock, Failsecure
280AH Direct Throw Surface Mount Bolt Lock, Failsecure
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Product Type
Electronic Auxiliary Lock
ADA Approved
False
Bolt Diameter
1/2 Inch
Strike Size
2-3/4" x 1-1/4" x 1/8"
Manufacturer Parent
SDC Security
Faceplate Dimension
2-3/4" x 1-1/4" x 1/4"
Sub-Series
110IV
ADA Compliant
No
Product Orientation
Conventional Direct Throw
Mounting Type
Mortise
Deadbolt Throw
1/2 Inch
Application
Forward Up to 1" Past the Face Plate to Accommodate Wide Door Gaps or Special Applications
Function Family
Part/Component
Features
Field Selectable Dual Voltage; Voltage and Current Spike Protection
Product Material
Stainless steel
Color Code
V/628
Duty
Fail Safe
Current Draw
900 mA at 12 VDC; 450 mA at 24 VDC
Backset
5-1/4 Inch
Warranty
5 Year
Series
Parts/Accessories
Input Voltage
12/24 VDC
Alternate Part Number-1
200188
Voltage
24VDC
Model
110I Direct Throw Mortise Bolt Lock, Failsafe
Electronic
Yes
Fail Safe / Fail Secure
Field Selectable
Product Overview
SDC 110 Series Direct Throw Bolt Locks Basic Electromechanical Bolt Locking Solutions
The SDC 110 Series represents a line of conventional direct throw bolt locks designed for secure, low-profile installation where basic, reliable locking is required. These bolt locks are available in failsafe or failsecure operation and are commonly used for access control in metal doors, cabinets, and specialty enclosures. Note: Not recommended for wood applications.
SDC 110IV and Model VariantsThe SDC 110IV is part of the 110 Series, offering the same core functionality with added versatility for special installations. This model is especially suited for scenarios requiring a simple, durable, and adjustable locking solution.
Model Highlights110 and 210 Models: Feature a bolt assembly adjustable up to 1" forward of the faceplate ideal for wide door gaps or non-standard door/frame alignments.
160 and 260 Models: Include the same forward-adjustable bolt and a field-adjustable automatic relock ball switch:
Keeps the bolt retracted while the door is open
Projects bolt automatically when the door closes
Bidirectional functionality suitable for swinging or sliding doors
180 and 280 Models: Universal surface mount design with an automatic relock switch, ideal for controlled access to doors, cabinets, or closets.
Direct throw stainless steel bolt
Field-selectable dual voltage (12/24 VDC)
Voltage and current spike protection
Integrated power regulator (180A and 280A models only)
Reliable operation for integration with access control and security systems
Perfect for:
Narrow-frame or specialty door applications
Securing utility closets or secure storage
Controlled entry via access control panels
RESOURCES
100-200-Datasheet.pdf (sdcsecurity.com)
INSTALLATIONS:
