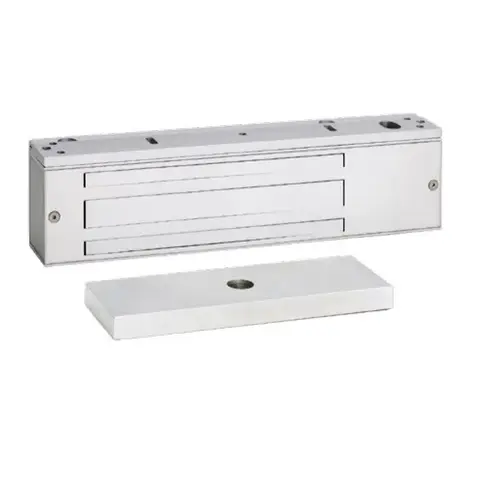

1570 Series 12-Volt/24-Volt DC 1200 lbs. Holding Force Aluminum Single Electromagnetic Door Lock

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

SDC 1571VClick To Copy 1570 Series 12-Volt/24-Volt DC 1200 lbs. Holding Force Aluminum Single Electromagnetic Door Lock

Item #: 1571V by SDC

UPC #: 840067658277

See reviewsSee reviews
In Stock

$412.25

/each
SAVE UP TO 41.22

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 580 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

628

Warranty

Limited Warranty

Pack Size

1

Manufacturer Warranty

Limited Warranty

Assembled Depth (in.)

3

Assembled Height (in.)

15.25

Assembled Width (in.)

3.5

Certifications and Listings

UL Recognized

Door Handing

Universal/Reversible

Door Locks & Knobs Product Type

Electromagnetic Locks

General Material

Aluminum

Hardware Finish Family

Metal

Maximum User Codes

0

Required Battery Type

Hardwired

Security/ANSI Grade

ANSI Grade 1 (Best)

UNSPSC

46171520

Product Type

1571 Series Mag Lock

Voltage

12V DC, 24V DC

Holding Force

1200 lbs

Alternate Part Number-1

138963

Finish code

628

Mounting

Surface Mount

Maglock Type

Single Door

Mounting Type

Surface Mount

Grade

ANSI/BHMA Grade 1

Application

Aluminum Frame/Aluminum Glass Door; Hollow Metal Frame/Wood Or Hollow Metal Door; Hollow Metal Or Aluminum Frame/Glass Door Without Top Rail

Color Code

628/V

Function

Magnetic Lock

Finish Description

Aluminum

Product Height

2-3/4 Inch

Product Length

11 Inch

Finish Family

Aluminum

Included Components

10/32" Machine Screws

Product Depth

1-9/16 Inch

Standards

UL 1034; UL 10B; UL 10C; ULC-S104; ULC-S533; Uniform Building Code Standard 7-2 Fire Test of Door Assemblies (1997); ANSI/BHMA A156.23 Grade 1; CSFM Listed 3774-0324:100; MEA City of New York 61-95-E

Function Family

Magnetic Locks

For Door Type

Single Door

Features

Wire Access Chamber with Terminal Block; Interlocking Quick Mount Assembly; Auto-Sensing Dual Voltage; Voltage and Current Spike Protection; Instant Release Anti-Residual Magnetism Circuitry; Captive Lock Mounting Screws

Input Voltage

12/24VDC

Series

1500 Series

Manufacturer Parent

SDC Security

Sub-Series

1571-V

Aluminium Bottle Contents

Swinging

ProductType

Manual

Height

2.95

Length

15.16

Width

3.54

Product Overview

SDC's patented EMLock design represents the pinnacle of magnetic lock evolution. The modular EMLock assembly makes them easy to stock, install, upgrade and mainta in. SDC 1500 series EMLocks include a lifetime warranty and are available in 650 lbs., 1200 lbs. and 1650 lbs. holding force. Compatible with any access control system, all EmLocks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks are UL Listed and ANSI Grade 1 compliant.

  • Single door electromagnetic lock
  • 1200 lbs. holding force
  • 12-Volt/24-Volt DC voltage
  • 125 mA at 24 -Volt DC, 250 mA at 12-Volt DC current draw
  • 11 in. L x 2-3/4 in. H x 1-9/16 in. D unit dimension
  • Includes machine screws
  • UL listed, UL 294
  • Limited warranty
