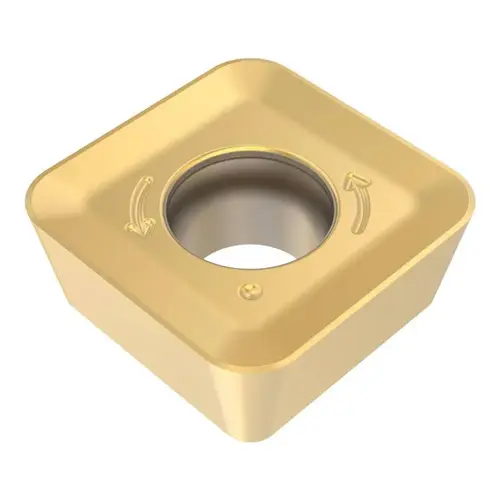

Seco 10068956 Milling Insert: SPKT140523TN-M14, F40M, Solid Carbide TiAlN

Item #: 10068956 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$38.54

/each
SAVE UP TO 3.85
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 210 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Square

Cutting Edge Style

High Feed Rate

Material Application

Steel

Length (mm)

14.00

ANSI Code

SPKT140523TN-M14

Number of Cutting Edges

4

Standards

ISO

Thickness (mm)

5.56

Insert Material

Solid Carbide

Series

SPKT-14

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0906

Length (Decimal Inch - 4 Decimals)

0.5512

Manufacturers Catalog Number

SPKT140523TN-M14

Material Grade

Fine Grain

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2189

Thickness (Inch)

7/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5512

Width (mm - 2 Decimals)

14.00

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.5512

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5512

Insert Shape

Square

Rake Angle

13

Chip Breaker

M14

Secondary Workpiece Material Code

K

Insert Style

SPKT

Insert Size Code

140523

Hole Diameter (Decimal Inch)

0.2205

Relief Angle

11.00

Included Angle Degree

90

Hole Diameter (Mm) ( - 0 Decimals)

0.22

Cutting Edge Effective Length (Decimal Inch)

0.5512

Manufacturer Grade

F40M

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R217.21-SP14

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Inscribed Circle (mm)

14.00

Concave Radius (Decimal Inch)

0.0910

Corner Radius (mm)

2.30

Iso Code

SPKT140523TN-M14

Product Overview
Milling Insert: SPKT140523TN-M14, F40M, Solid Carbide TiCN, Al2O3 Coated, 5.56 mm Thick, 14 mm Wide
