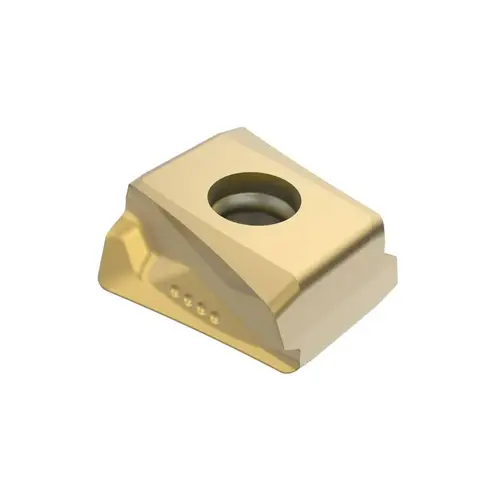

Milling Inserts; Insert Style: LOEX ; Insert Size: 12 ; Insert Material: Carbide ; Insert Shape: Rectangle ; Manufacturer Grade: F40M ; Corner Radius (Decimal Inch): 0.0315 TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 10207742 Milling Inserts; Insert Style: LOEX ; Insert Size: 12 ; Insert Material: Carbide ; Insert Shape: Rectangle ; Manufacturer Grade: F40M ; Corner Radius (Decimal Inch): 0.0315 TiAlN

Item #: 10207742 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$60.92

/each
SAVE UP TO 6.09
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 190 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.4724

Iso Code

LOEX120708TR-T4-M12

Width (Decimal Inch - 4 Decimals)

0.2953

Secondary Workpiece Material

Stainless Steel

Thickness (Decimal Inch - 4 Decimals)

0.4039

Relief Angle

0.000

Cutting Edge Style

T-Land

Cutter Series Compatibility

R217/220.94-12

Rake

Negative

Material Grade

P10-P40

Thickness Range (Decimal Inch)

0.3500 to 0.5000

Insert Holding Method

Screw

Coating/Finish

TiAlN

Rake Angle

35.000

UNSPSC Code

23291601

Corner Radius (Inch)

1/32

Insert Style

LOEX

Manufacturers Catalog Number

10207742

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Cutting Edge Effective Length (Decimal Inch)

0.4724

Manufacturer Grade

F40M

Length (Decimal Inch - 4 Decimals)

0.5591

Secondary Workpiece Material Code

M

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2953

Coating Process

PVD

Corner Radius (Decimal Inch)

0.0315

Chip Breaker

M12

Length Range (Decimal Inch)

0.5000 to 0.6000

Multi-use Tool

Yes

Coating Classification

PVD

Insert Size Code

120708

Included Angle Degree

90

Cutting Direction

Right Hand

Material Application

Steel

Number of Cutting Edges

4

ANSI Code

LOEX120708TR-T4-M12

Series

LOEX

Insert Shape

Rectangle

Single or Double Sided Insert

Double

Primary Workpiece Material Code

P

Product Overview
Milling Inserts; Insert Style: LOEX ; Insert Size: 12 ; Insert Material: Carbide ; Insert Shape: Rectangle ; Manufacturer Grade: F40M ; Corner Radius (Decimal Inch): 0.0315
