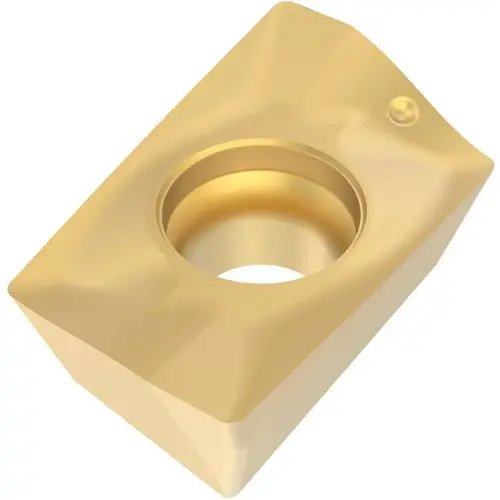

Seco 13481 Milling Insert: XOEX120404FR-E06, F40M, Solid Carbide TiAlN

Item #: 13481 by Seco

Brand: Seco

See reviewsSee reviews
See reviews summary
In Stock

$44.76

/each
SAVE UP TO 4.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 154 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Shape

Parallelogram

Cutting Edge Style

Sharp

Material Application

Steel

ANSI Code

XOEX120404FR-E06

Number of Cutting Edges

2

Standards

ISO

Insert Material

Solid Carbide

Series

XOEX-12

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.4724

Manufacturers Catalog Number

XOEX120404FR-E06

Material Grade

Fine Grain

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1980

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3228

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4724

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Cast Iron

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3228

Corner Radius (Inch)

1/64

Insert Shape

Parallelogram

Rake Angle

27.4

Chip Breaker

E06

Secondary Workpiece Material Code

K

Insert Style

XOEX

Insert Size Code

120404

Hole Diameter (Decimal Inch)

0.1535

Relief Angle

15

Included Angle Degree

90

Cutting Edge Effective Length (Decimal Inch)

0.4724

Manufacturer Grade

F40M

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Single or Double Sided Insert

Single

Cutter Series Compatibility

R217.69-12

Length Range (Decimal Inch)

0.4500 to 0.5000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Iso Code

XOEX120404FR-E06

Product Overview
Milling Insert: XOEX120404FR-E06, F40M, Solid Carbide Coated, 0.199" Thick, 0.322" Wide
