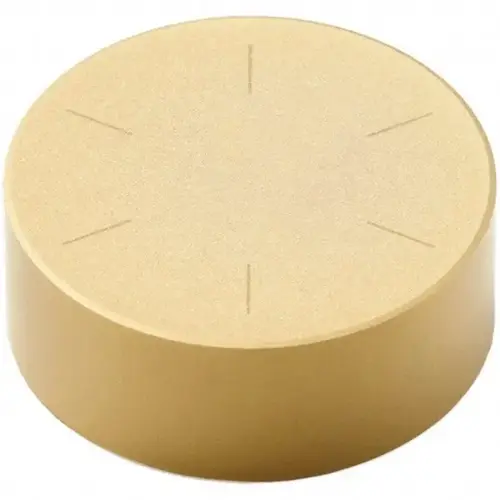

Turning Insert: RNMN32S 300P, Polycrystalline Cubic Boron Nitride (PCBN) TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 14858 Turning Insert: RNMN32S 300P, Polycrystalline Cubic Boron Nitride (PCBN) TiAlN

Item #: 14858 by Seco

See reviewsSee reviews
See reviews summary

$277.32

/each
SAVE UP TO 27.73
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

10

Standards

ANSI

Included Angle

360degree

Insert Material

Polycrystalline Cubic Boron Nitride (PCBN)

Series

RNMN-Flat Top

Coating Process

PCBN

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.1874

Manufacturers Catalog Number

00014858

Material Grade

K01

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3748in

Width (Inch)

3/8in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3748

Insert Thickness (Decimal Inch)

0.1252

Insert Thickness (Inch)

1/8

Lead Angle

360degree

Maximum Depth of Cut (Decimal Inch)

0.0320

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Super-alloys & Titanium

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3748

Corner Radius (Inch)

3/16

Insert Shape

Round

Clearance Code

N

Rake Angle

0

Full Radius

Yes

Insert Shape Code

R

Chip Breaker

Flat Top

Secondary Workpiece Material Code

S

Insert Style

RNMN

Insert Size Code

42

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Facing

Insert Length (Inch)

3/8

Manufacturer Grade

CBN300P

Length Range (Decimal Inch)

0.3000 - 0.4000

Proprietary Coating Designation

Multilayer Coating

Iso Code

RNMN090300S

Product Overview
Turning Insert: RNMN32S 300P, Polycrystalline Cubic Boron Nitride (PCBN) TiAlN & TiN Coated, Neutral, 0.3748" Long, 3/8" Inscribed Circle, 0.1874" Corner Radius, 360 ° Round, Series RNMN-Flat Top
