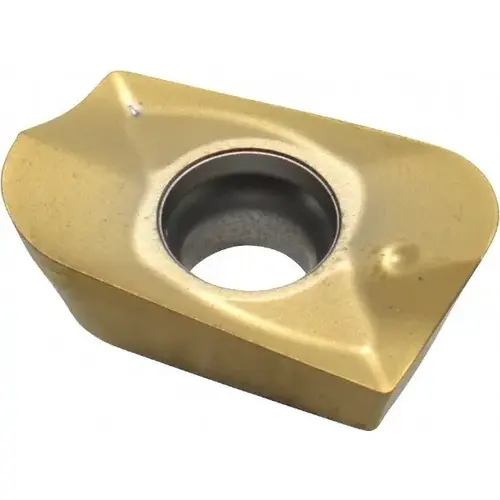

Seco 14999 Milling Insert: XOMX180640R-M10, F40M, Solid Carbide TiAlN
Item #: 14999 by Seco
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shape
Parallelogram
Cutting Edge Style
Honed
Material Application
Steel
ANSI Code
XOMX180640R-M10
Number of Cutting Edges
2
Standards
ISO
Insert Material
Solid Carbide
Series
XOMX-18
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.1575
Length (Decimal Inch - 4 Decimals)
0.6693
Manufacturers Catalog Number
XOMX180640R-M10
Material Grade
Fine Grain
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2500
Thickness (Inch)
1/4
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4409
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.6693
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Cast Iron
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.4409
Insert Shape
Parallelogram
Rake Angle
21
Chip Breaker
M10
Secondary Workpiece Material Code
K
Insert Style
XOMX
Insert Size Code
180640
Hole Diameter (Decimal Inch)
0.1969
Relief Angle
15
Included Angle Degree
90
Cutting Edge Effective Length (Decimal Inch)
0.6693
Manufacturer Grade
F40M
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Single
Cutter Series Compatibility
R217.69-18
Length Range (Decimal Inch)
0.6500 to 0.7000
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Iso Code
XOMX180640R-M10
Product Overview
Milling Insert: XOMX180640R-M10, F40M, Solid Carbide Coated, 1/4" Thick, 0.441" Wide
