Ball End Mill: 1/4" Dia, 3/8" LOC, 4 Flute, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

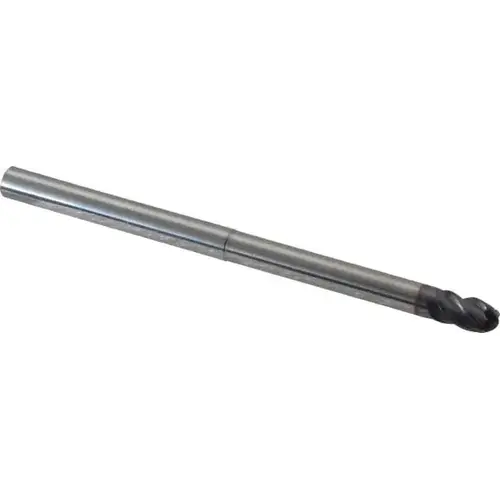

Seco 17002079 Ball End Mill: 1/4" Dia, 3/8" LOC, 4 Flute, Solid Carbide AlTiN

Item #: 17002079 by Seco

UPC #: 698036575489

See reviewsSee reviews
See reviews summary
In Stock

$125.65

/each
SAVE UP TO 12.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Helix Angle

40

Number of Flutes

4

Chipbreaker

No

Length Type

Extended

Cutting Direction

Right Hand

Series

STBN440

System of Measurement

Fractional Inch

Variable Helix

Yes

Coating/Finish

AlTiN

Coolant Through

No

Length of Cut (Decimal Inch)

0.3750

Length of Cut (Inch)

3/8

Manufacturers Catalog Number

STBN440-0.250-E2-B.0-Z4

Neck Length (Inch)

1-3/4

Overall Length (Decimal Inch)

4.0000

Overall Length (Inch)

4

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.2500

Shank Diameter (Inch)

1/4

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

Yes

Coating Classification

PVD

Coating/Finish Family

AlTiN

End Mill Material

Solid Carbide

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

Low

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.2500

Mill Diameter (Inch)

1/4

Neck Diameter (Decimal Inch)

0.2400

Neck Length (Decimal Inch)

1.7500

Single Or Double End

Single

Variable Index

No

Reach Length (Inch)

2-1/8

Nose Radius (Decimal Inch)

0.1250

Mill Diameter Tolerance

+0.0000/-0.0020 in

Reach Length (Decimal Inch)

2.1250

Overall Length Tolerance

+0.0600/-0.0600 in

Neck Diameter (mm)

0.24

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

-0.0001/-0.0004 in

Product Overview
Ball End Mill: 1/4" Dia, 3/8" LOC, 4 Flute, Solid Carbide 4" OAL, 1/4" Shank Dia, 12 deg Helix, AlTiN Coated, Single End, Series STBN440
