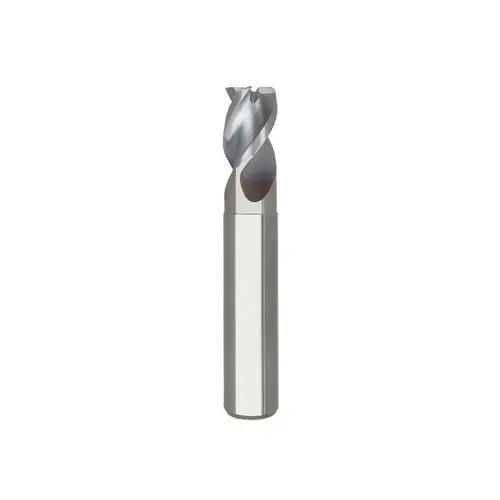

Seco 17002206 Corner Radius End Mill: 1/2" Dia, 5/8" LOC, 0.0200" Radius, 3 Flute, Solid Carbide TiCN

Item #: 17002206 by Seco

UPC #: 698036578817

See reviewsSee reviews
See reviews summary

$174.05

/each
SAVE UP TO 17.41
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Vendor Drop Ship

Y

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

UNSPSC Code

27112803

Shank Diameter (Inch)

1/2

Shank Diameter (Decimal Inch)

0.5000

Primary Workpiece Material Code

N

Primary Workpiece Material

Non-Ferrous Metal

Overall Length (Inch)

3

Overall Length (Decimal Inch)

3.0000

Length of Cut (Inch)

5/8

Length Of Cut (Decimal Inch - 4 Decimals)

0.6250

Corner Radius (Decimal Inch)

0.0200

Coolant Through

No

Coating/Finish

TiCN

Variable Helix

No

Series

AN340

Cutting Direction

Right Hand

Length Type

Stub

Chipbreaker

No

Pitch

Coarse

Number of Flutes

3

End Type

Corner Radius

Shank Type

Straight-Cylindrical

Material Application

Non-Ferrous Metal

Flute Type

Spiral

For Use With

Toolholders

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

High

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.5000

Mill Diameter (Inch)

1/2

Neck Diameter (Decimal Inch)

0.4800

Single Or Double End

Single

Variable Index

No

Reach Length (Inch)

1-1/8

Mill Diameter Tolerance

-0.0020/0.0000 in

Reach Length (Decimal Inch)

1.1250

Overall Length Tolerance

-0.0600/0.0600 in

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

-0.0001/-0.0004 in

Corner Radius Tolerance

+0.00100 to -0.00100 in

Product Overview
Corner Radius End Mill: 1/2" Dia, 5/8" LOC, 0.0200" Radius, 3 Flute, Solid Carbide 3" OAL, 1/2" Shank Dia, 40 deg Helix, TiCN Coated, Single End, Centercutting, Series AN340
