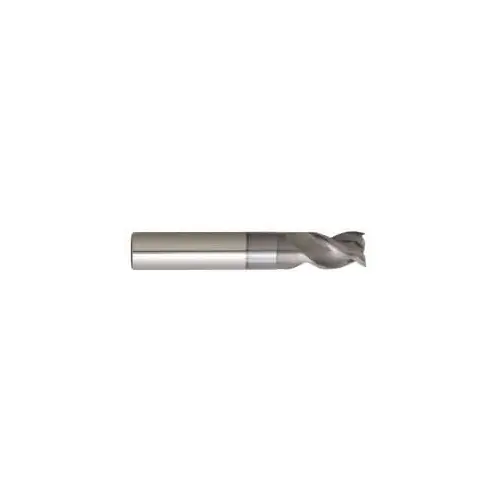

Corner Radius End Mill: 1" Dia, 1-1/4" LOC, 0.0400" Radius, 3 Flute, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 17002219 Corner Radius End Mill: 1" Dia, 1-1/4" LOC, 0.0400" Radius, 3 Flute, Solid Carbide TiCN

Item #: 17002219 by Seco

See reviewsSee reviews
See reviews summary

$654.52

/each
SAVE UP TO 65.45
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Variable Helix

No

Coating/Finish

TiCN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0400

Length Of Cut (Decimal Inch - 4 Decimals)

1.2500

Length of Cut (Inch)

1-1/4

Overall Length (Decimal Inch)

4.0000

Overall Length (Inch)

4

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Shank Diameter (Decimal Inch)

1.0000

For Use With

Toolholders

Flute Type

Spiral

Material Application

Non-Ferrous Metal

Shank Type

Straight-Cylindrical

End Type

Corner Radius

Number of Flutes

3

Pitch

Coarse

Chipbreaker

No

Length Type

Stub

Cutting Direction

Right Hand

Series

AN340

Shank Diameter (Inch)

1

UNSPSC Code

27112803

Vendor Drop Ship

Y

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

High

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

1.0000

Mill Diameter (Inch)

1

Neck Diameter (Decimal Inch)

0.9600

Single Or Double End

Single

Variable Index

No

Reach Length (Inch)

1-5/8

Mill Diameter Tolerance

-0.0020/0.0000 in

Reach Length (Decimal Inch)

1.6250

Overall Length Tolerance

-0.0600/0.0600 in

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

-0.0001/-0.0004 in

Product Overview
Corner Radius End Mill: 1" Dia, 1-1/4" LOC, 0.0400" Radius, 3 Flute, Solid Carbide 4" OAL, 1" Shank Dia, 40 deg Helix, TiCN Coated, Single End, Centercutting, Series AN340
