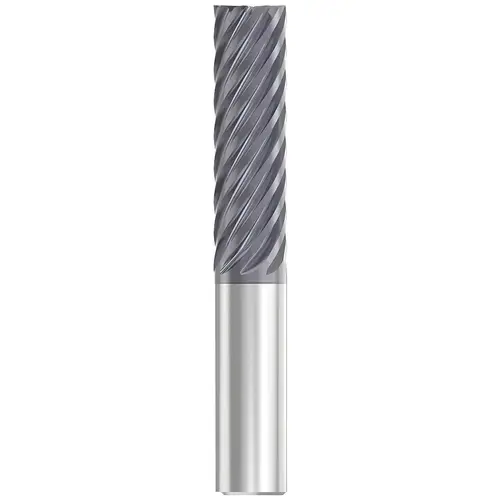

Corner Chamfer End Mill: 1" Dia, 2" LOC, 9 Flute, 0.0120" Chamfer Width, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 17002372 Corner Chamfer End Mill: 1" Dia, 2" LOC, 9 Flute, 0.0120" Chamfer Width, Solid Carbide AlTiN

Item #: 17002372 by Seco

See reviewsSee reviews
See reviews summary

$619.76

/each
SAVE UP TO 61.98
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Shank Diameter (Inch)

1

Variable Helix

No

Vendor Drop Ship

Y

Length Of Cut (Decimal Inch - 4 Decimals)

2.0000

Overall Length (Inch)

5

TIR Maximum (Decimal Inch)

0.0005

Mill Diameter (Inch)

1

Material Grade

Micrograin

Chamfer Length (Decimal Inch)

0.0120

Chamfer Width (Decimal Inch)

0.0120

Material Removal Type

Roughing & Finishing

Coating/Finish

AlTiN

UNSPSC Code

27112803

Manufacturers Catalog Number

S938-1.000-D2-C012.0-Z9

Number of Flutes

9

Length of Cut (Inch)

2

Chipbreaker

No

Mill Diameter (Decimal Inch)

1.0000

Primary Workpiece Material

Steel

Flute Type

Variable

Length Type

Short

Extended Reach

No

Helix Style

Medium

Overall Length (Decimal Inch)

5.0000

Coolant Through

No

Mill Diameter Tolerance

+0.0000 to -0.0020 in

End Mill Material

Solid Carbide

Coating Classification

PVD

Reach Length (Inch)

2

Flute Direction

Right Hand

Centercutting

No

Cutting Direction

Right Hand

Reach Length (Decimal Inch)

2.0000

Shank Diameter (Decimal Inch)

1.0000

Pitch

Super Close

Chamfer Angle

45

Series

S938

Single Or Double End

Single

Variable Index

Yes

Primary Workpiece Material Code

P

Product Overview
Corner Chamfer End Mill: 1" Dia, 2" LOC, 9 Flute, 0.0120" Chamfer Width, Solid Carbide 5" OAL, 1" Shank Dia, 38 deg Helix, AlTiN Coated, Series S938
