Ball End Mill: 3/8" Dia, 1-3/8" LOC, 4 Flute, Solid Carbide CVD Diamond

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

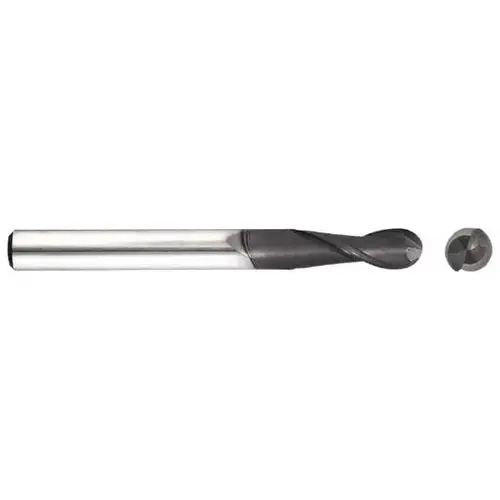

Seco 17004611 Ball End Mill: 3/8" Dia, 1-3/8" LOC, 4 Flute, Solid Carbide CVD Diamond

Item #: 17004611 by Seco

UPC #: 698036186982

See reviewsSee reviews
See reviews summary

$455.91

/each
SAVE UP TO 45.59
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Helix Angle

30

Number of Flutes

4

Chipbreaker

No

Length Type

Extra Long

Cutting Direction

Right Hand

Series

DIALB430

System of Measurement

Fractional Inch

Variable Helix

No

Coating/Finish

CVD Diamond

Coolant Through

No

Length of Cut (Decimal Inch)

1.3750

Length of Cut (Inch)

1-3/8

Manufacturers Catalog Number

DIALB430-0.375-D6-B.0-Z4

Overall Length (Decimal Inch)

6.0000

Overall Length (Inch)

6

Shank Diameter (Decimal Inch)

0.3750

Shank Diameter (Inch)

3/8

UNSPSC Code

27112803

Vendor Drop Ship

Y

Centercutting

Yes

Coating Classification

CVD

Coating/Finish Family

CVD Diamond

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.3750

Mill Diameter (Inch)

3/8

Neck Length (Decimal Inch)

0.0000

Single Or Double End

Single

Variable Index

No

Nose Radius (Decimal Inch)

0.1875

Mill Diameter Tolerance

+0.0000/-0.0020 in

Reach Length (Decimal Inch)

1.3750

Overall Length Tolerance

+0.0600/-0.0600 in

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

-0.0001/-0.0004 in

Product Overview
Ball End Mill: 3/8" Dia, 1-3/8" LOC, 4 Flute, Solid Carbide 6" OAL, 3/8" Shank Dia, 30 deg Helix, CVD Diamond Coated, Single End, Series DIALB430
