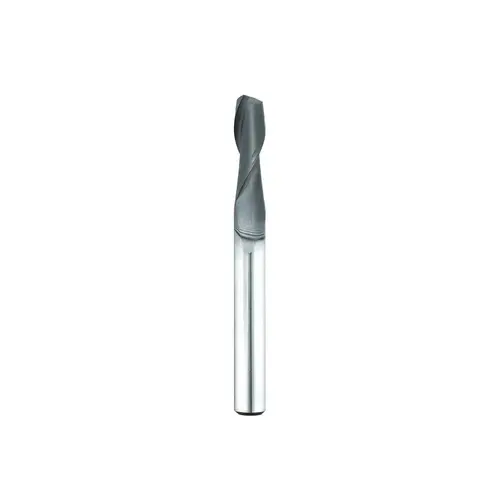

Seco 17005025 Square End Mill: 3/16 inch Dia, 5/8 inch LOC, 3/16 inch Shank Dia, 2 inch OAL, 2 Flutes, Solid Carbide CVD Diamond
Item #: 17005025 by Seco
UPC #: 698036779160
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight
Helix Angle
30
Number of Flutes
2
Chipbreaker
No
Length Type
Regular
Cutting Direction
Right Hand
Series
DIA230
System of Measurement
Fractional Inch
Variable Helix
No
Coating/Finish
CVD Diamond
Coolant Through
No
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Material Grade
Micrograin
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Primary Workpiece Material
CFRP Materials
Primary Workpiece Material Code
C
Shank Diameter (Decimal Inch)
0.1875
Shank Diameter (Inch)
3/16
UNSPSC Code
27112803
Vendor Drop Ship
Y
Centercutting
Yes
Coating/Finish Family
CVD Diamond
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Single Or Double End
Single
Variable Index
No
Mill Diameter Tolerance
+0.0010/-0.0010 in
Overall Length Tolerance
+0.0600/-0.0600 in
TIR Maximum (Decimal Inch)
0.0005
Shank Diameter Tolerance
-0.0001/-0.0004 in
Product Overview
Square End Mill: 3/16 inch Dia, 5/8 inch LOC, 3/16 inch Shank Dia, 2 inch OAL, 2 Flutes, Solid Carbide Single End, Diamond Finish, Spiral Flute, Centercutting, RH Cut, RH Flute, Series DIA230
