Corner Radius End Mill: 7/16" Dia, 1" LOC, 0.0200" Radius, 5 Flute, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 17007019 Corner Radius End Mill: 7/16" Dia, 1" LOC, 0.0200" Radius, 5 Flute, Solid Carbide AlTiN

Item #: 17007019 by Seco

See reviewsSee reviews
See reviews summary

$153.78

/each
SAVE UP TO 15.38
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

Toolholders

Flute Type

Spiral

Material Application

Steel

Shank Type

Straight-Cylindrical

End Type

Corner Radius

Number of Flutes

5

Pitch

Normal

Chipbreaker

No

Length Type

Short

Cutting Direction

Right Hand

Series

S545R

Variable Helix

No

Coating/Finish

AlTiN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0200

Length Of Cut (Decimal Inch - 4 Decimals)

1.0000

Length of Cut (Inch)

1

Overall Length (Decimal Inch)

2.7500

Overall Length (Inch)

2-3/4

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.4375

Shank Diameter (Inch)

7/16

UNSPSC Code

27112803

Vendor Drop Ship

Y

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

High

Material Removal Type

Finishing

Mill Diameter (Decimal Inch)

0.4375

Mill Diameter (Inch)

7/16

Single Or Double End

Single

Variable Index

No

Mill Diameter Tolerance

-0.0020/0.0000 in

Overall Length Tolerance

-0.0600/0.0600 in

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

-0.0001/-0.0004 in

Product Overview

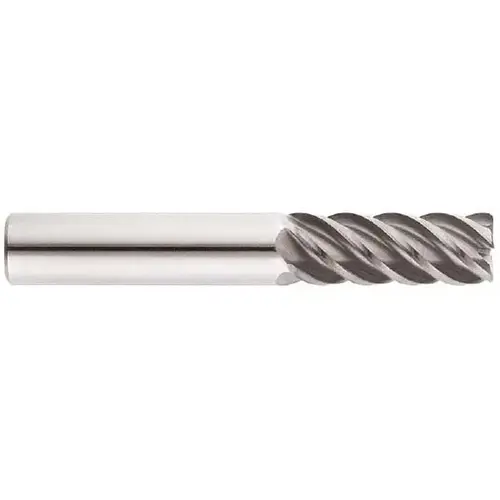

Corner Radius End Mill: 7/16" Dia, 1" LOC, 0.0200" Radius, 5 Flute, Solid Carbide 2-3/4" OAL, 7/16" Shank Dia, 45 deg Helix, AlTiN Coated, Single End, Centercutting, Series S545R
