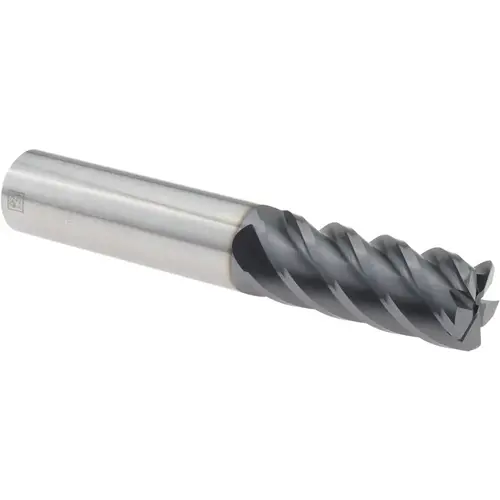

Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 0.0300" Radius, 5 Flute, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 17007034Click To Copy Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 0.0300" Radius, 5 Flute, Solid Carbide AlTiN

Item #: 17007034 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$169.14

/each
SAVE UP TO 16.91

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 45 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

Toolholders

Flute Type

Spiral

Material Application

Steel

Shank Type

Straight-Cylindrical

End Type

Corner Radius

Number of Flutes

5

Pitch

Normal

Chipbreaker

No

Length Type

Standard

Cutting Direction

Right Hand

Series

S545R

Variable Helix

No

Coating/Finish

AlTiN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0300

Length Of Cut (Decimal Inch - 4 Decimals)

1.2500

Length of Cut (Inch)

1-1/4

Overall Length (Decimal Inch)

3.0000

Overall Length (Inch)

3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.5000

Shank Diameter (Inch)

1/2

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

High

Material Removal Type

Finishing

Mill Diameter (Decimal Inch)

0.5000

Mill Diameter (Inch)

1/2

Single Or Double End

Single

Variable Index

No

Mill Diameter Tolerance

-0.0020/0.0000 in

Overall Length Tolerance

-0.0600/0.0600 in

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

-0.0001/-0.0004 in

Corner Radius Tolerance

+0.00100 to -0.00100 in

Product Overview
Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 0.0300" Radius, 5 Flute, Solid Carbide 3" OAL, 1/2" Shank Dia, 45 deg Helix, AlTiN Coated, Single End, Centercutting, Series S545R
