Milling Insert: 218.19-160T-04-MD11, F25M, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

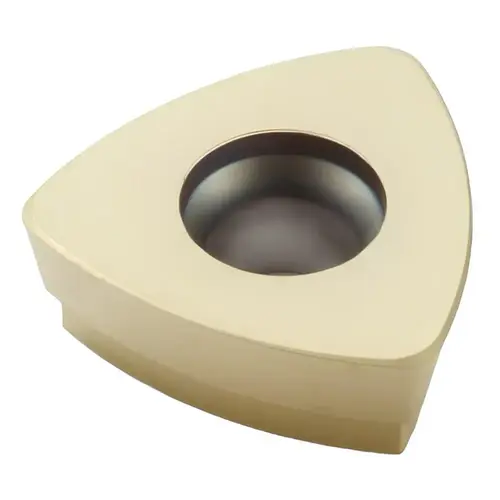

Seco 02417600 Milling Insert: 218.19-160T-04-MD11, F25M, Solid Carbide TiAlN

Item #: 02417600 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$46.97

/each
SAVE UP TO 4.70
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 74 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Triangle

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

218.19-160T-04-MD11

Number of Cutting Edges

3

Standards

ISO

Insert Material

Solid Carbide

Series

218.19-160

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0472

Length (Decimal Inch - 4 Decimals)

0.4402

Manufacturers Catalog Number

218.19-160T-04-MD11

Material Grade

Medium Grain

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1874

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4402

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0790

Multi-use Tool

Yes

Rake

Neutral

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.4402

Corner Radius (Inch)

3/64

Insert Shape

Trigon

Rake Angle

0

Chip Breaker

MD11

Secondary Workpiece Material Code

P

Insert Style

218.19

Insert Size Code

160T-04

Hole Diameter (Decimal Inch)

0.1575

Relief Angle

12.00

Included Angle Degree

60

Manufacturer Grade

F25M

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R218.19-32

Length Range (Decimal Inch)

0.4000 to 0.4500

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Convex Radius (Decimal Inch)

0.6299

Iso Code

218.19-160T-04-MD11

Product Overview
Milling Insert: 218.19-160T-04-MD11, F25M, Solid Carbide Coated, 0.187" Thick
