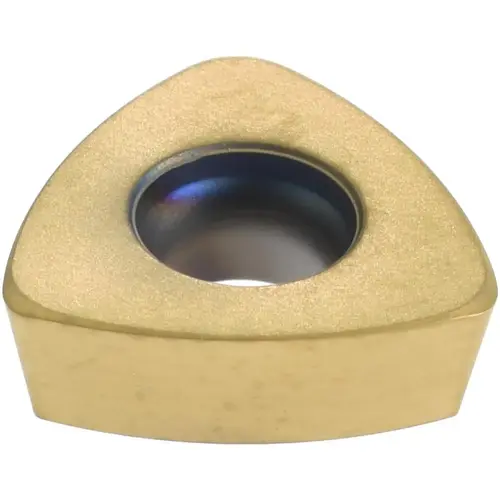

Seco 2435656-XCP10 Milling Insert: 218.19-100T-MD08, F25M, Solid Carbide - pack of 10

Item #: 2435656-XCP10 by Seco

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Triangle

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

218.19-100T-MD08

Number of Cutting Edges

3

Standards

ISO

Insert Material

Solid Carbide

Series

218.19-100

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.2780

Manufacturers Catalog Number

218.19-100T-MD08

Material Grade

Medium Grain

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1094

Thickness (Inch)

7/64

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2780

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0290

Multi-use Tool

Yes

Rake

Neutral

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2780

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Rake Angle

0

Chip Breaker

MD08

Secondary Workpiece Material Code

P

Insert Style

218.19

Insert Size Code

100T

Hole Diameter (Decimal Inch)

0.1181

Relief Angle

12.00

Included Angle Degree

60

Manufacturer Grade

F25M

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R218.19-20

Length Range (Decimal Inch)

0.0000 to 0.3200

Thickness Range (Decimal Inch)

0.1000 to 0.1250

Convex Radius (Decimal Inch)

0.3937

Iso Code

218.19-100T-MD08

Product Overview
Milling Insert: 218.19-100T-MD08, F25M, Solid Carbide Coated, 0.109" Thick
