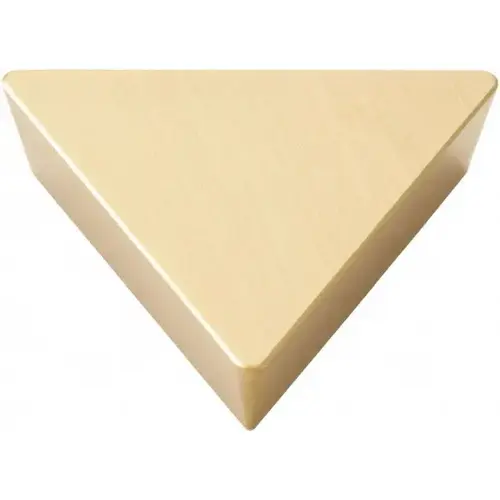

Seco 2505952 Milling Insert: TPU322T, F40M, Solid Carbide TiAlN
Item #: 2505952 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shape
Triangle
Cutting Edge Style
T-Land
Material Application
Steel
ANSI Code
TPUN160308T
Number of Cutting Edges
3
Standards
ISO
Insert Material
Solid Carbide
Series
TPUN-16
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Length (Decimal Inch - 4 Decimals)
0.5315
Length (Inch)
17/32
Manufacturers Catalog Number
TPUN160308T
Material Grade
Fine Grain
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1252
Thickness (Inch)
1/8
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5315
Width (Inch)
17/32
Coating Classification
PVD
Insert Holding Method
Wedge Clamp
Maximum Depth of Cut (Decimal Inch)
0.5315
Multi-use Tool
Yes
Rake
Neutral
Secondary Workpiece Material
Cast Iron
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Triangle
Rake Angle
0
Chip Breaker
None
Secondary Workpiece Material Code
K
Insert Style
TPUN
Insert Size Code
160308
Relief Angle
11.00
Included Angle Degree
60
Inscribed Circle (Inch)
3/8
Cutting Edge Effective Length (Decimal Inch)
0.5315
Manufacturer Grade
F40M
Inscribed Circle Range (Decimal Inch)
0.3500 to 0.4000
Single or Double Sided Insert
Single
Cutter Series Compatibility
R220.17-16
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Iso Code
TPUN160308T
Product Overview
Milling Insert: TPU322T, F40M, Solid Carbide Coated, 1/8" Thick
