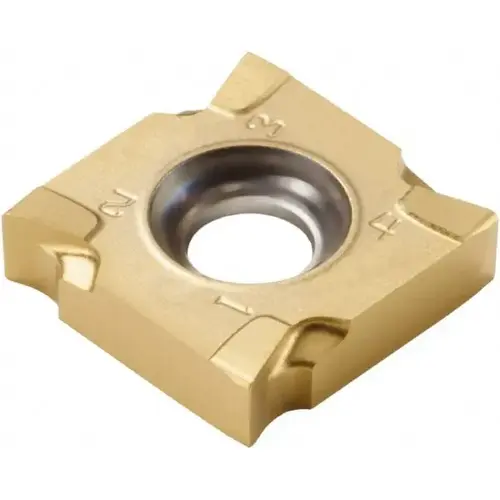

Seco 02526639 Milling Insert: SNHQ120516TR4-M07, F40M, Solid Carbide TiAlN
Item #: 02526639 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
SNHQ120516TR4-M07
Corner Radius (mm)
1.60
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Length Range (Decimal Inch)
0.0000 to 0.3200
Cutter Series Compatibility
335.19-12
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.5000 to 0.5100
Manufacturer Grade
F40M
Cutting Edge Effective Length (Decimal Inch)
0.2126
Inscribed Circle (Inch)
1/2
Included Angle Degree
90
Relief Angle
0.00
Insert Size Code
120516
Insert Style
SNHQ
Secondary Workpiece Material Code
K
Chip Breaker
M07
Rake Angle
20
Insert Shape
Square
Inscribed Circle (Decimal Inch)
0.5000
Insert Hand
Right Hand
Secondary Workpiece Material
Cast Iron
Rake
Negative
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.2047
Insert Holding Method
Screw
Coating Classification
PVD
Width (mm - 2 Decimals)
5.20
Width (Inch)
1/2
Width (Decimal Inch - 4 Decimals)
0.5000
Vendor Drop Ship
N
UNSPSC Code
23291601
Thickness (Decimal Inch - 4 Decimals)
0.2126
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
Fine Grain
Manufacturers Catalog Number
SNHQ120516TR4-M07
Length (Decimal Inch - 4 Decimals)
0.2126
Corner Radius (Decimal Inch)
0.0630
Coating/Finish
TiAlN
Coating Process
PVD
Series
SNHQ-12
Insert Material
Solid Carbide
Standards
ISO
Number of Cutting Edges
4
ANSI Code
SNHQ120516TR4-M07
Material Application
Steel
Cutting Edge Style
T-Land
Shape
Square
Product Overview
Milling Insert: SNHQ120516TR4-M07, F40M, Solid Carbide Coated, 0.2787" Thick, 5.2 mm Wide
