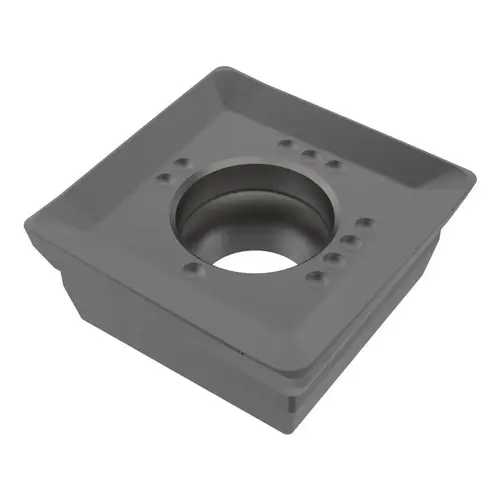

Milling Insert: SONX09T304TR-M10, MK1500, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2566300-XCP10 Milling Insert: SONX09T304TR-M10, MK1500, Solid Carbide - pack of 10

Item #: 2566300-XCP10 by Seco

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Square

Cutting Edge Style

T-Land

Material Application

Cast Iron

ANSI Code

SONX09T304TR-M10

Number of Cutting Edges

4

Standards

ISO

Insert Material

Solid Carbide

Series

SONX-09

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.3760

Manufacturers Catalog Number

SONX09T304TR-M10

Material Grade

Micrograin

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.1563

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.3760

Coating Classification

Duratomic

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3150

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3760

Corner Radius (Inch)

1/64

Insert Shape

Square

Rake Angle

19

Chip Breaker

M10

Insert Style

SONX

Insert Size Code

09T304

Hole Diameter (Decimal Inch)

0.1378

Relief Angle

15.00

Included Angle Degree

90

Cutting Edge Effective Length (Decimal Inch)

0.3760

Manufacturer Grade

MK1500

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R220.99-09

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Iso Code

SONX09T304TR-M10

Product Overview
Milling Insert: SONX09T304TR-M10, MK1500, Solid Carbide TiCN, Al2O3 Coated, 0.156" Thick
