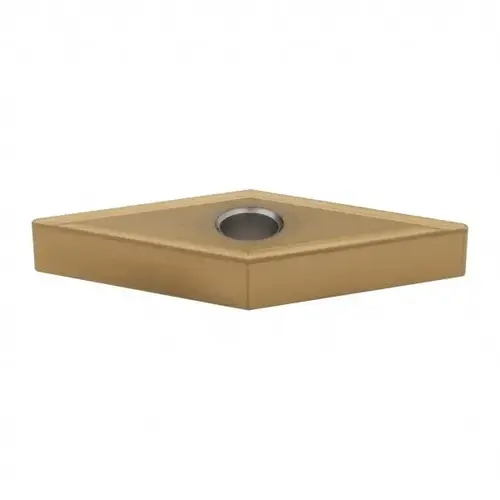

Seco 2615989 Turning Insert: VNGP 432-M1 TS2000, Solid Carbide TiAlN
Item #: 2615989 by Seco
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
4
Standards
ANSI
Included Angle
35
Insert Material
Carbide
Series
VNGP-M1
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
02615989
Material Grade
M05
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5
Width (Inch)
1/2
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
1.7322
Insert Thickness (Decimal Inch)
0.1874
Insert Thickness (Inch)
3/16
Lead Angle
35
Maximum Depth of Cut (Decimal Inch)
0.8346
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/32
Insert Shape
Diamond
Clearance Code
N
Full Radius
No
Insert Shape Code
V
Chip Breaker
M1
Secondary Workpiece Material Code
P
Insert Style
VNGP
Insert Size Code
432
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.2028
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Back Turning
Manufacturer Grade
TS2000
Length Range (Decimal Inch)
0.7000 - 10.0000
Inscribed Circle (mm)
12.70
Proprietary Coating Designation
Multilayer Coating
Iso Code
VNGG220408-M1
Product Overview
Turning Insert: VNGP 432-M1 TS2000, Solid Carbide TiAlN & TiN Coated, 1/2" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series VNGP
