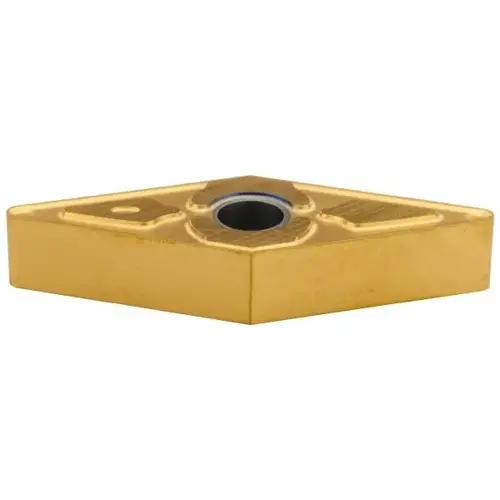

Seco 02616000 Turning Insert: VNMG 332-MF4 TS2500, Solid Carbide TiAlN
Item #: 02616000 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
35degree
Insert Material
Carbide
Series
VNMG-MF4
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
02616000
Material Grade
S10
Primary Workpiece Material
Superalloys & Titanium
Primary Workpiece Material Code
S
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
1.3070
Insert Thickness (Decimal Inch)
0.1874
Insert Thickness (Inch)
3/16
Lead Angle
35degree
Maximum Depth of Cut (Decimal Inch)
0.5748
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Diamond 35
Clearance Code
N
Full Radius
No
Insert Shape Code
V
Chip Breaker
MF4
Secondary Workpiece Material Code
P
Insert Style
VNMG
Insert Size Code
332
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1500
Relief Angle
0
Inscribed Circle (Inch)
3/8
Multi-Use Application
Back Turning
Manufacturer Grade
TS2500
Length Range (Decimal Inch)
0.7000 - 10.0000
Proprietary Coating Designation
Multilayer Coating
Iso Code
VNMG160408-MF4
Product Overview
Turning Insert: VNMG 332-MF4 TS2500, Solid Carbide TiAlN & TiN Coated, 3/8" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series VNMG
