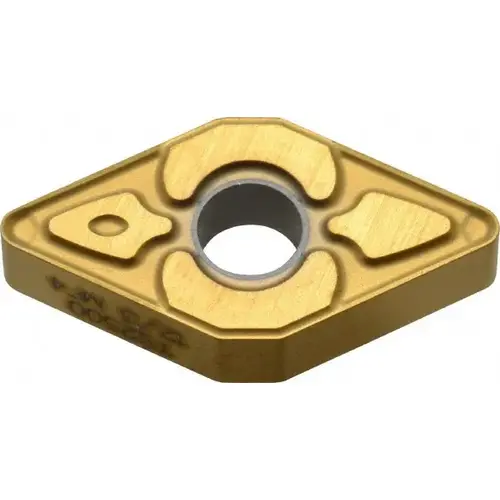

Seco 02616002 Turning Insert: DNMG 433-MF4 TS2500, Solid Carbide TiAlN
Item #: 02616002 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DNMG-MF4
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0472
Manufacturers Catalog Number
02616002
Material Grade
S10
Primary Workpiece Material
Superalloys & Titanium
Primary Workpiece Material Code
S
UNSPSC Code
23242105
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.5000in
Width (Inch)
1/2in
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
1.2204
Insert Thickness (Decimal Inch)
0.1874
Insert Thickness (Inch)
3/16
Lead Angle
55degree
Maximum Depth of Cut (Decimal Inch)
0.5630
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
3/64
Insert Shape
Diamond 55
Clearance Code
N
Full Radius
No
Insert Shape Code
D
Chip Breaker
MF4
Secondary Workpiece Material Code
P
Insert Style
DNMG
Insert Size Code
433
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2028
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Back Turning
Manufacturer Grade
TS2500
Length Range (Decimal Inch)
0.7000 - 10.0000
Inscribed Circle (mm)
12.70
Proprietary Coating Designation
Multilayer Coating
Iso Code
DNMG150412-MF4
Product Overview
Turning Insert: DNMG 433-MF4 TS2500, Solid Carbide TiAlN & TiN Coated, 1/2" Inscribed Circle, 3/64" Corner Radius, 55 degree Diamond, Series DNMG
