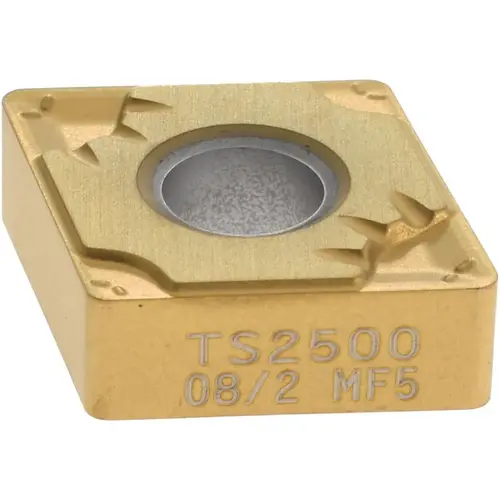

Seco 02616005 Turning Insert: CNMG 432-MF5 TS2500, Solid Carbide TiAlN

Item #: 02616005 by Seco

Brand: Seco

See reviewsSee reviews
See reviews summary
In Stock

$30.26

/each
SAVE UP TO 3.03
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 70 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CNMG-MF5

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

02616005

Material Grade

S10

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

80

Maximum Depth of Cut (Decimal Inch)

0.1063

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

MF5

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2028

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Chip Breaker Operation

Finishing

Manufacturer Grade

TS2500

ISO Size Code

120408

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

432

Inscribed Circle (mm)

12.70

ISO Insert Code

CNMG120408

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG120408-MF5

ANSI Insert Code

CNMG432

Product Overview
Turning Insert: CNMG 432-MF5 TS2500, Solid Carbide TiAlN & TiN Coated, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CNMG
