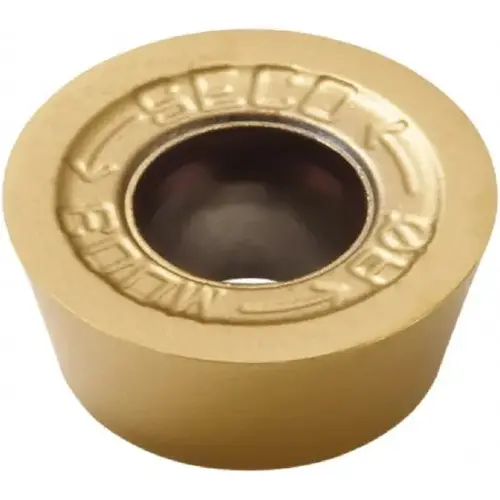

Seco 2656034 Milling Insert: RDHW06T1M0-MD02, MP3000, Solid Carbide TiAlN
Item #: 2656034 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shape
Round
Cutting Edge Style
Honed
Material Application
Steel
ANSI Code
RDHW06T1M0-MD02
Number of Cutting Edges
4
Standards
ISO
Insert Material
Solid Carbide
Series
RDHW-06
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.1181
Length (Decimal Inch - 4 Decimals)
0.2362
Manufacturers Catalog Number
RDHW06T1M0-MD02
Material Grade
Micrograin
Primary Workpiece Material
Hard Material
Primary Workpiece Material Code
H
Thickness (Decimal Inch - 4 Decimals)
0.0858
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.2362
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1181
Multi-use Tool
Yes
Rake
Neutral
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.2362
Insert Shape
Round
Rake Angle
0
Chip Breaker
MD02
Secondary Workpiece Material Code
P
Insert Style
RDHW
Insert Size Code
06T1
Hole Diameter (Decimal Inch)
0.0984
Relief Angle
15
Included Angle Degree
360
Cutting Edge Effective Length (Decimal Inch)
0.1181
Manufacturer Grade
MP3000
Inscribed Circle Range (Decimal Inch)
0.0000 to 0.2500
Single or Double Sided Insert
Single
Cutter Series Compatibility
R217.29-03
Length Range (Decimal Inch)
0.0000 to 0.3200
Thickness Range (Decimal Inch)
0.0000 to 0.1000
Iso Code
RDHW06T1M0-MD02
Product Overview
Milling Insert: RDHW06T1M0-MD02, MP3000, Solid Carbide Coated, 0.086" Thick
