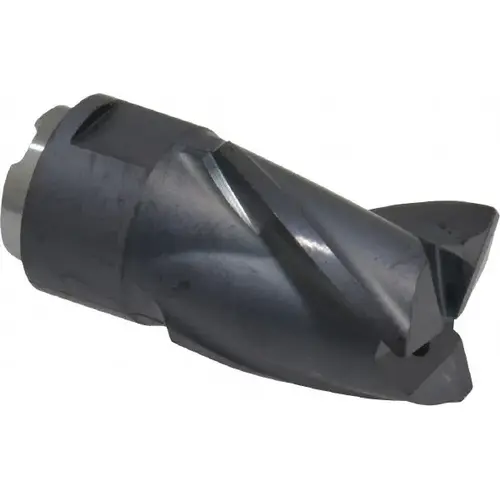

Seco 2687161 Square-Shoulder Replaceable Milling Tip: MP12500R016Z3M04MP3000 MP3000, Carbide TiAlN

Item #: 2687161 by Seco

See reviewsSee reviews
See reviews summary

$163.48

/each
SAVE UP TO 16.35
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

30

Number of Flutes

3

Standards

ANSI

Tool Material

Carbide

Chipbreaker

M04

Series

MP12

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

Yes

Corner Radius (Decimal Inch)

0.0160

Length Of Cut (Decimal Inch - 4 Decimals)

0.5510in

Manufacturers Catalog Number

02687161

Material Grade

P20

Overall Length (Decimal Inch)

0.9450in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.5000in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.5510

Insert Hand

Right Hand

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MP12

Maximum Depth of Cut (mm)

14

Milling Tip Type

Slotting

Manufacturer Grade

MP3000

Functional Length (Decimal Inch)

0.9450

Functional Length (mm)

24.00

Milling Tip Full Description

MP12-00.500-.55-R016Z3-M04

Extension From Holder (Inch)

0.9450

Product Overview
Square-Shoulder Replaceable Milling Tip: MP12500R016Z3M04MP3000 MP3000, Carbide 3 Flutes, 0.551" Max Depth of Cut, Series Minimaster Plus
