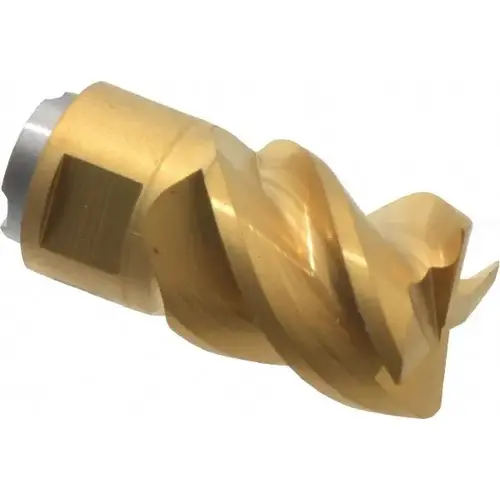

Seco 2687234 Replaceable Milling Tip: MP12.500R016Z4E03 F40M F40M, Carbide TiAlN

Item #: 2687234 by Seco

See reviewsSee reviews
See reviews summary

$172.57

/each
SAVE UP TO 17.26
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

50

Number of Flutes

4

Extension From Holder (Inch)

0.9450

Milling Tip Full Description

MP12-00.500-.55-R016Z4-E03

Functional Length (Decimal Inch)

0.9450

Manufacturer Grade

F40M

Milling Tip Type

Square-Shoulder

Milling Tip Style

MP12

Included Angle Degree

90

Chamfer Angle

0degree

Insert Hand

Right Hand

Maximum Depth of Cut (Decimal Inch)

0.5510

Lead Angle

90

Cutting Width (Decimal Inch)

0.5000in

Vendor Drop Ship

Y

UNSPSC Code

23291601

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Overall Length (Decimal Inch)

0.9450in

Material Grade

P10

Manufacturers Catalog Number

02687234

Length Of Cut (Decimal Inch - 4 Decimals)

0.5510in

Corner Radius (Decimal Inch)

0.0160

Coolant Through

No

Coating/Finish

TiAlN

Coating Process

PVD

Series

MP12

Chipbreaker

E03

Tool Material

Carbide

Standards

ANSI

Product Overview
Replaceable Milling Tip: MP12.500R016Z4E03 F40M F40M, Carbide 4 Flutes, 0.551" Max Depth of Cut
