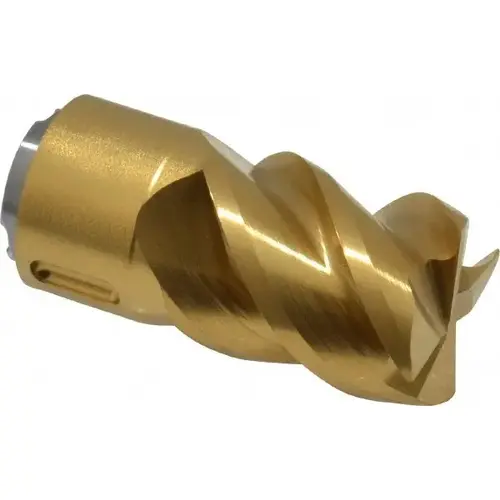

Seco 2687250 Square-Shoulder Replaceable Milling Tip: MP16.625R016Z4E04 F40M F40M, Carbide TiAlN

Item #: 2687250 by Seco

See reviewsSee reviews
See reviews summary

$258.46

/each
SAVE UP TO 25.85
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

50

Number of Flutes

4

Standards

ANSI

Tool Material

Carbide

Chipbreaker

E04

Series

MP16

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0160

Length Of Cut (Decimal Inch - 4 Decimals)

0.7480in

Manufacturers Catalog Number

02687250

Material Grade

P10

Overall Length (Decimal Inch)

1.2830in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.6250in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.7480

Insert Hand

Right Hand

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MP16

Maximum Depth of Cut (mm)

19

Milling Tip Type

Square-Shoulder

Manufacturer Grade

F40M

Functional Length (Decimal Inch)

1.2830

Functional Length (mm)

32.60

Milling Tip Full Description

MP16-00.625-.74-R016Z4-E04

Extension From Holder (Inch)

1.2830

Product Overview
Square-Shoulder Replaceable Milling Tip: MP16.625R016Z4E04 F40M F40M, Carbide 4 Flutes, 0.748" Max Depth of Cut, Series Minimaster Plus
