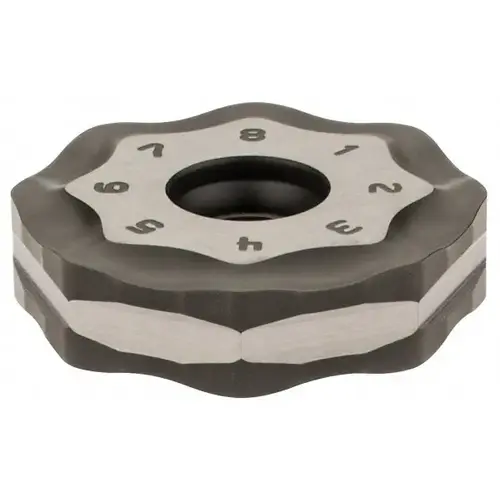

Milling Insert: ONMU090520ANTN-M15, MK1500, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2688942-XCP10 Milling Insert: ONMU090520ANTN-M15, MK1500, Solid Carbide - pack of 10

Item #: 2688942-XCP10 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$652.58

/package
SAVE UP TO 65.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Octagon

Cutting Edge Style

T-Land

Material Application

Cast Iron

ANSI Code

ONMU090520ANTN-M15

Number of Cutting Edges

16

Standards

ISO

Insert Material

Solid Carbide

Series

ONMU-09

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0787

Length (Decimal Inch - 4 Decimals)

0.8661

Manufacturers Catalog Number

ONMU090520ANTN-M15

Material Grade

Micrograin

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.2189

Thickness (Inch)

7/32

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.8661

Coating Classification

Duratomic

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3031

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.8661

Insert Shape

Octagon

Rake Angle

15

Chip Breaker

M15

Insert Style

ONMU

Insert Size Code

090520

Hole Diameter (Decimal Inch)

0.2205

Relief Angle

0

Included Angle Degree

135

Cutting Edge Effective Length (Decimal Inch)

0.3031

Manufacturer Grade

MK1500

Inscribed Circle Range (Decimal Inch)

0.7000 to 1.0000

Single or Double Sided Insert

Double

Cutter Series Compatibility

R220.48-09

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Inscribed Circle (mm)

22.00

Iso Code

ONMU090520ANTN-M15

Product Overview
Milling Insert: ONMU090520ANTN-M15, MK1500, Solid Carbide Coated, 0.228" Thick, 0.866" Wide
