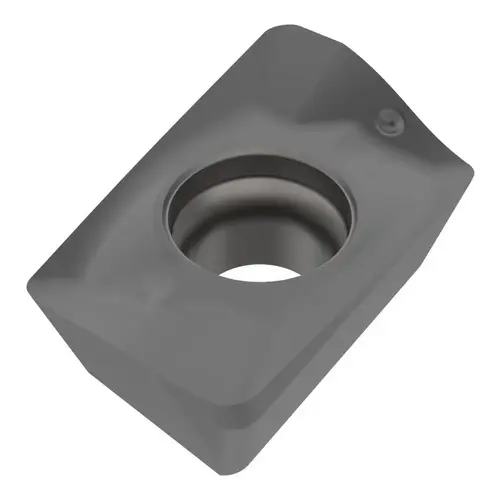

Milling Insert: XOEX120408R-M07, MM4500, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2743853-XCP10 Milling Insert: XOEX120408R-M07, MM4500, Solid Carbide - pack of 10

Item #: 2743853-XCP10 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$488.58

/package
SAVE UP TO 48.86
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Primary Workpiece Material Code

M

Single or Double Sided Insert

Single

Insert Shape

Parallelogram

Series

XOEX-12

ANSI Code

XOEX120408R-M07

Number of Cutting Edges

2

Material Application

Steel

Included Angle Degree

90

Insert Size Code

120408

Coating Classification

CVD

Multi-use Tool

Yes

Length Range (Decimal Inch)

0.4500 to 0.5000

Chip Breaker

M07

Hole Diameter (Decimal Inch)

0.1535

Corner Radius (Decimal Inch)

0.0315

Primary Workpiece Material

Stainless Steel

Coating Process

CVD

Inscribed Circle (Decimal Inch)

0.3228

Standards

ISO

Secondary Workpiece Material Code

P

Length (Decimal Inch - 4 Decimals)

0.4724

Manufacturer Grade

MM4500

Cutting Edge Effective Length (Decimal Inch)

0.4724

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Insert Hand

Right Hand

Manufacturers Catalog Number

XOEX120408R-M07

Insert Style

XOEX

Corner Radius (Inch)

1/32

UNSPSC Code

23291601

Rake Angle

20.3

Coating/Finish

TiCN

Insert Holding Method

Screw

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Shape

Parallelogram

Material Grade

Coarse Grain

Rake

Positive

Cutter Series Compatibility

R217.69-12

Cutting Edge Style

Honed

Relief Angle

15.00

Thickness (Decimal Inch - 4 Decimals)

0.1980

Secondary Workpiece Material

Steel

Width (Decimal Inch - 4 Decimals)

0.3228

Iso Code

XOEX120408R-M07

Maximum Depth of Cut (Decimal Inch)

0.4724

Vendor Drop Ship

N

Insert Material

Solid Carbide

Product Overview
Milling Insert: XOEX120408R-M07, MM4500, Solid Carbide Coated, 0.199" Thick, 0.322" Wide
