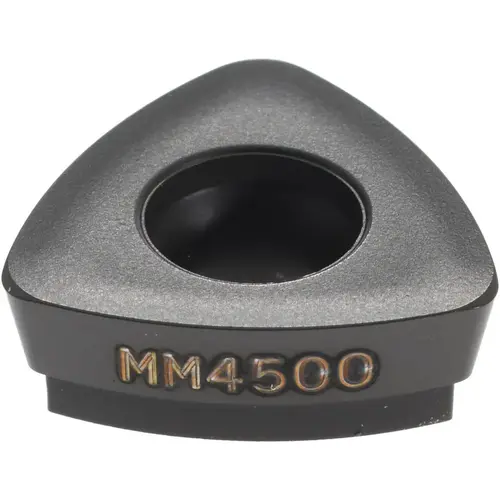

Seco 2744586-XCP10 Milling Insert: 218.19-160T-04-M08, MM4500, Solid Carbide - pack of 10

Item #: 2744586-XCP10 by Seco

Brand: Seco

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$515.63

/package
SAVE UP TO 51.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Insert Material

Solid Carbide

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0790

Iso Code

218.19-160T-04-M08

Width (Decimal Inch - 4 Decimals)

0.4402

Secondary Workpiece Material

Steel

Thickness (Decimal Inch - 4 Decimals)

0.1874

Relief Angle

12.00

Cutting Edge Style

T-Land

Cutter Series Compatibility

R218.19-32

Rake

Positive

Material Grade

Coarse Grain

Shape

Triangle

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Insert Holding Method

Screw

Coating/Finish

TiCN

Rake Angle

10

UNSPSC Code

23291601

Corner Radius (Inch)

3/64

Insert Style

218.19

Manufacturers Catalog Number

218.19-160T-04-M08

Insert Hand

Neutral

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Manufacturer Grade

MM4500

Length (Decimal Inch - 4 Decimals)

0.4402

Inscribed Circle (mm)

11.18

Secondary Workpiece Material Code

P

Standards

ISO

Inscribed Circle (Decimal Inch)

0.4402

Coating Process

CVD

Primary Workpiece Material

Stainless Steel

Corner Radius (Decimal Inch)

0.0472

Hole Diameter (Decimal Inch)

0.1575

Chip Breaker

M08

Length Range (Decimal Inch)

0.4000 to 0.4500

Multi-use Tool

Yes

Coating Classification

CVD

Insert Size Code

160T-04

Convex Radius (Decimal Inch)

0.6299

Thickness (Inch)

3/16

Included Angle Degree

60

Material Application

Steel

Number of Cutting Edges

3

ANSI Code

218.19-160T-04-M08

Series

218.19-160

Insert Shape

Trigon

Single or Double Sided Insert

Single

Primary Workpiece Material Code

M

Product Overview
Milling Insert: 218.19-160T-04-M08, MM4500, Solid Carbide Coated, 0.187" Thick
