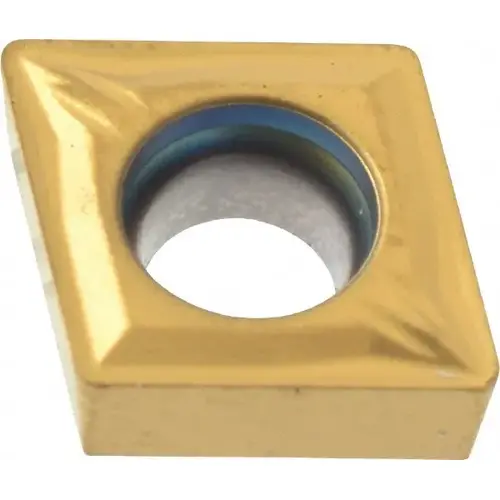

Turning Insert: CCGT 21.51MF2 CP500, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 02754783 Turning Insert: CCGT 21.51MF2 CP500, Solid Carbide TiAlN

Item #: 02754783 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$31.54

/each
SAVE UP TO 3.15
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CCGT-MF2

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

02754783

Material Grade

M10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500in

Width (Inch)

1/4in

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.2559

Insert Thickness (Decimal Inch)

0.0937

Insert Thickness (Inch)

3/32

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.2402

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

Diamond 80

Clearance Code

C

Full Radius

No

Insert Shape Code

C

Chip Breaker

MF2

Secondary Workpiece Material Code

P

Insert Style

CCGT

Insert Size Code

21.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Boring

Manufacturer Grade

CP500

Length Range (Decimal Inch)

0.0000 - 0.3000

Inscribed Circle (mm)

6.35

Proprietary Coating Designation

Multilayer Coating

Iso Code

CCGT060204-MF2

Product Overview
Turning Insert: CCGT 21.51MF2 CP500, Solid Carbide TiAlN & TiN Coated, Neutral, 1/4" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series CCGT
