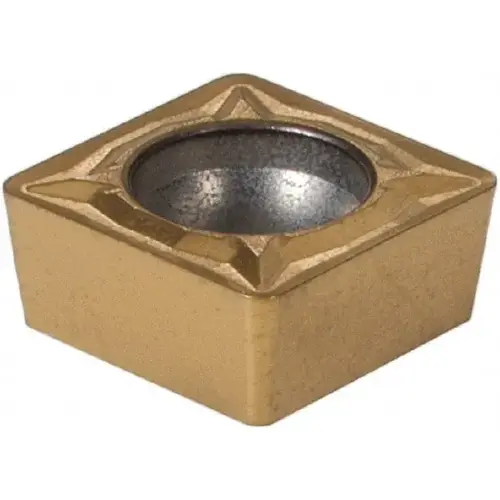

Seco 02755042 Turning Insert: SCMT 32.52MF2 CP500, Solid Carbide TiAlN
Item #: 02755042 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
90degree
Insert Material
Carbide
Series
SCMT-MF2
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
02755042
Material Grade
M10
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3748in
Width (Inch)
3/8in
Width (mm - 2 Decimals)
9.52
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.3748
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Lead Angle
90degree
Maximum Depth of Cut (Decimal Inch)
0.3425
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Square
Clearance Code
C
Full Radius
No
Insert Shape Code
S
Chip Breaker
MF2
Secondary Workpiece Material Code
P
Insert Style
SCMT
Insert Size Code
32.52
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1772
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Boring
Insert Length (Inch)
3/8
Manufacturer Grade
CP500
Length Range (Decimal Inch)
0.3000 - 0.4000
Proprietary Coating Designation
Multilayer Coating
Iso Code
SCMT09T308-MF2
Product Overview
Turning Insert: SCMT 32.52MF2 CP500, Solid Carbide TiAlN & TiN Coated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series SCMT
