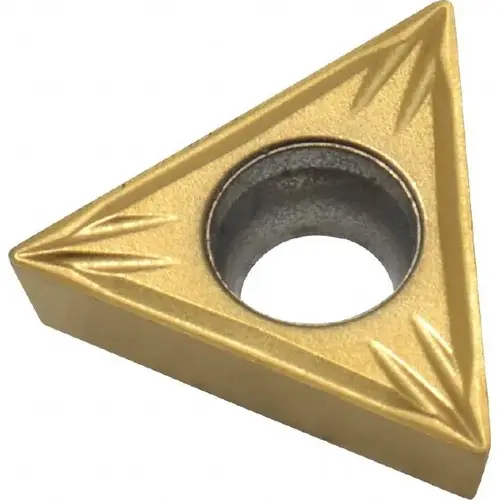

Seco 02755045 Turning Insert: TCMT 32.51MF2 CP500, Solid Carbide TiAlN
Item #: 02755045 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Length Range (Decimal Inch)
0.6000 - 0.6500
Proprietary Coating Designation
Multilayer Coating
Iso Code
TCMT16T304-MF2
Manufacturer Grade
CP500
Multi-Use Application
Back Turning
Inscribed Circle (Inch)
3/8
Relief Angle
7
Hole Diameter (Decimal Inch)
0.1772
Tolerance Code
M
Insert Size Code
32.51
Insert Style
TCMT
Secondary Workpiece Material Code
P
Chip Breaker
MF2
Insert Shape Code
T
Full Radius
No
Clearance Code
C
Insert Shape
Triangle
Corner Radius (Inch)
1/64
Inscribed Circle (Decimal Inch)
0.3750
Wiper Edge
No
Insert Hand
Neutral
Secondary Workpiece Material
Steel
Rake
Positive
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.6102
Lead Angle
60degree
Insert Thickness (Inch)
5/32
Insert Thickness (Decimal Inch)
0.1563
Insert Length (Decimal Inch)
0.6496
Insert Holding Method
Screw
Coating Classification
PVD
Width (Decimal Inch - 4 Decimals)
0.6496in
Vendor Drop Ship
N
UNSPSC Code
23242105
Primary Workpiece Material Code
M
Primary Workpiece Material
Stainless Steel
Material Grade
M10
Manufacturers Catalog Number
02755045
Corner Radius (Decimal Inch)
0.0157
Coating/Finish
TiAlN
Coating Process
PVD
Series
TCMT-MF2
Insert Material
Carbide
Included Angle
60degree
Standards
ANSI
Number of Cutting Edges
3
Cutting Edge Style
Chamfered & Honed
Product Overview
Turning Insert: TCMT 32.51MF2 CP500, Solid Carbide TiAlN & TiN Coated, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series TCMT
