Replaceable Milling Tip: MP16.625R031Z3E05 F40M F40M, Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

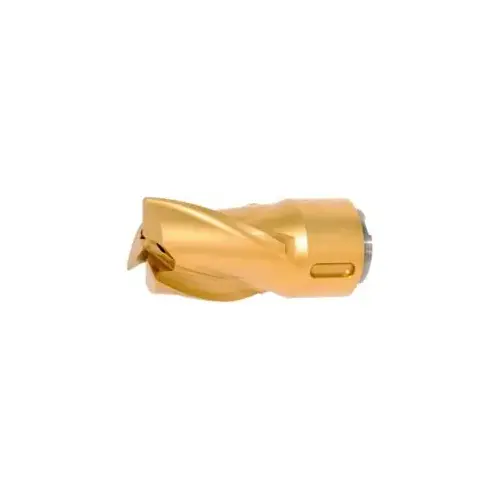

Seco 2756705 Replaceable Milling Tip: MP16.625R031Z3E05 F40M F40M, Carbide TiAlN

Item #: 2756705 by Seco

See reviewsSee reviews
See reviews summary

$245.58

/each
SAVE UP TO 24.56
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

30

Number of Flutes

3

Standards

ANSI

Tool Material

Carbide

Chipbreaker

E05

Series

MP16

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

Yes

Corner Radius (Decimal Inch)

0.0310

Length Of Cut (Decimal Inch - 4 Decimals)

0.7480in

Manufacturers Catalog Number

02756705

Material Grade

P10

Overall Length (Decimal Inch)

1.2830in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.6250in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.7480

Insert Hand

Right Hand

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MP16

Milling Tip Type

Slotting

Manufacturer Grade

F40M

Functional Length (Decimal Inch)

1.2830

Milling Tip Full Description

MP16-00.625-.74-R031Z3-E05

Extension From Holder (Inch)

1.2830

Product Overview
Replaceable Milling Tip: MP16.625R031Z3E05 F40M F40M, Carbide 3 Flutes, 0.748" Max Depth of Cut
