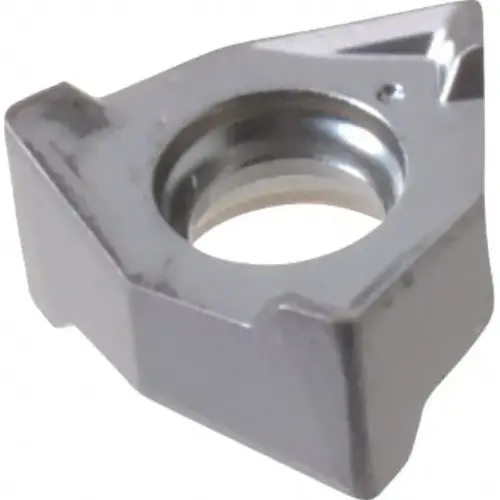

Milling Insert: XNEX040304TR-M08, MP3000, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2765956-XCP10 Milling Insert: XNEX040304TR-M08, MP3000, Solid Carbide - pack of 10

Item #: 2765956-XCP10 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$402.05

/package
SAVE UP TO 40.20
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Series

XNEX-04

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.1575

Manufacturers Catalog Number

XNEX040304TR-M08

Material Grade

Micrograin

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

Thickness (Decimal Inch - 4 Decimals)

0.1295

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2638

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.1575

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2638

Corner Radius (Inch)

1/64

Insert Shape

Trigon

Rake Angle

27

Chip Breaker

M08

Secondary Workpiece Material Code

P

Insert Style

XNEX

Insert Size Code

040304

Hole Diameter (Decimal Inch)

0.1244

Relief Angle

0

Included Angle Degree

88

Cutting Edge Effective Length (Decimal Inch)

0.1575

Manufacturer Grade

MP3000

Insert Material

Solid Carbide

Standards

ISO

Number of Cutting Edges

6

ANSI Code

XNEX040304TR-M08

Material Application

Steel

Cutting Edge Style

T-Land

Shape

Trigon

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Double

Cutter Series Compatibility

R217.96-04

Length Range (Decimal Inch)

0.0000 to 0.3200

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Iso Code

XNEX040304TR-M08

Product Overview
Milling Insert: XNEX040304TR-M08, MP3000, Solid Carbide Coated, 0.0129" Thick, 0.264" Wide
