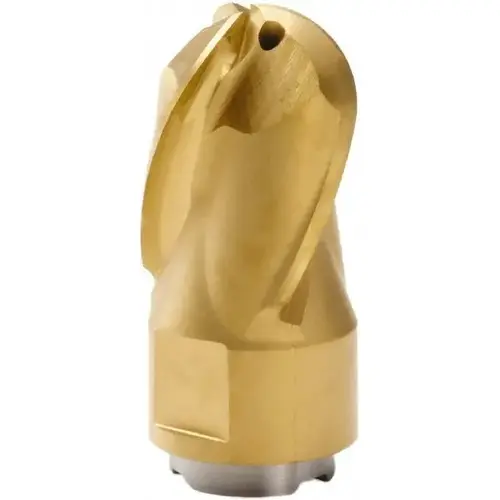

Replaceable Milling Tip: MP16.625B90Z3-E05 F40M F40M, Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2781067 Replaceable Milling Tip: MP16.625B90Z3-E05 F40M F40M, Carbide TiAlN

Item #: 2781067 by Seco

See reviewsSee reviews
See reviews summary

$264.05

/each
SAVE UP TO 26.41
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Vendor Drop Ship

Y

Length Of Cut (Decimal Inch - 4 Decimals)

0.7480in

Cutting Width (Decimal Inch)

0.6250in

Maximum Depth of Cut (Decimal Inch)

0.7480

Milling Tip Type

Profile

Extension From Holder (Inch)

1.2830

Material Grade

P10

Helix Angle

30

Coating/Finish

TiAlN

UNSPSC Code

23291601

Manufacturers Catalog Number

02781067

Insert Hand

Right Hand

Manufacturer Grade

F40M

Number of Flutes

3

Lead Angle

90

Chipbreaker

E05

Standards

ANSI

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.3120

Milling Tip Full Description

MP16-00.625-.74-B90Z3-E05

Overall Length (Decimal Inch)

1.2830in

Milling Tip Style

MP16

Coolant Through

Yes

Functional Length (Decimal Inch)

1.2830

Included Angle Degree

90

Chamfer Angle

0degree

Series

MP16

Primary Workpiece Material Code

P

Tool Material

Carbide

Product Overview
Replaceable Milling Tip: MP16.625B90Z3-E05 F40M F40M, Carbide 3 Flutes, 5/16" Max Depth of Cut
