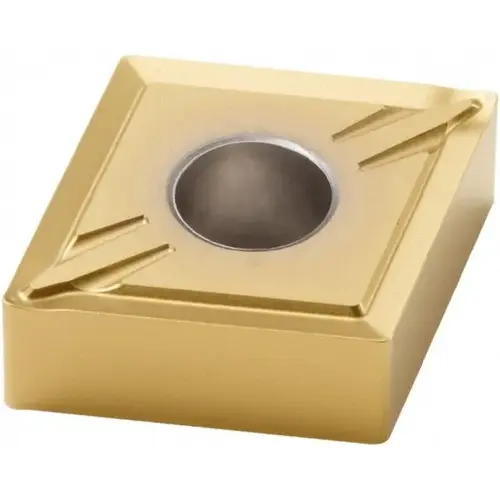

Turning Insert: CNMG430.5-FF2 CP500, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2786785-XCP10 Turning Insert: CNMG430.5-FF2 CP500, Solid Carbide - pack of 10

Item #: 2786785-XCP10 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$289.62

/package
SAVE UP TO 28.96
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-FF2

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

02786785

Material Grade

M10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.5000

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/128

Insert Shape

Diamond 80

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

FF2

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

430.5

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2028

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Manufacturer Grade

CP500

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG120402-FF2

Product Overview
Turning Insert: CNMG430.5-FF2 CP500, Solid Carbide TiAlN & TiN Coated, 1/2" Inscribed Circle, 0.008" Corner Radius, 80 degree Diamond, Series CNMG
