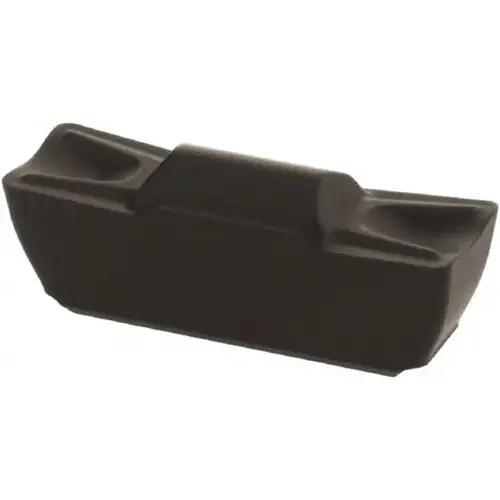

Seco 2815039-XCP10 Multi-Directional Turning Insert: TGK1500, Solid Carbide - pack of 10

Item #: 2815039-XCP10 by Seco

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Dog Bone

Chipbreaker

FT

Insert Material

Solid Carbide

Series

MDT

Coating Process

CVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

LCMF130404-0400-FT

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Vendor Drop Ship

Y

Insert Length (Decimal Inch)

0.6300

Insert Hand

Neutral

Insert Length (mm)

12.40

Secondary Workpiece Material Code

K

Insert Style

LCMF

Insert Size Code

130404

Relief Angle

0

Maximum Cutting Width (Decimal Inch)

0.1570

Cutting Height (Decimal Inch)

0.1570

Manufacturer Grade

TGK1500

Maximum Cutting Width (mm)

4.00

Product Overview
Multi-Directional Turning Insert: TGK1500, Solid Carbide 0.157" Cutting Width, 0.157" Cutting Height, 0.016" Corner Radius
