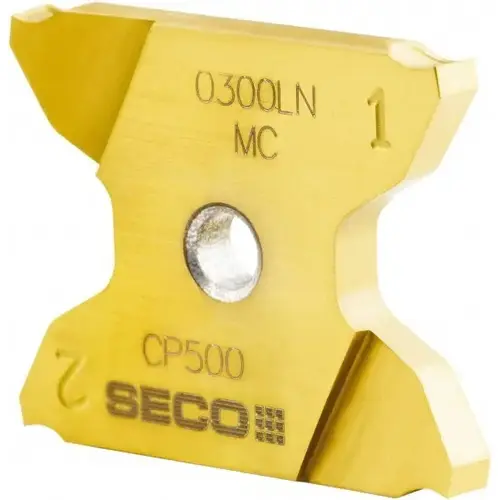

Seco 2823043 Grooving Insert: X4GK2503009-A0031LNMC CP500, Solid Carbide TiAlN

Item #: 2823043 by Seco

See reviewsSee reviews
See reviews summary

$128.34

/each
SAVE UP TO 12.83
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO

Insert Material

Solid Carbide

Series

X4

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0035

Material Grade

Micrograin

Overall Length (Decimal Inch)

1.0010

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.0310

Insert Holding Method

Clamp

Lead Angle

15

Maximum Depth of Cut (Decimal Inch)

0.1690

Multi-use Tool

Yes

Rake

Positive

Single Or Double End

Double

Insert Hand

Right Hand

Rake Angle

15.00

Full Radius

No

Chip Breaker

MC

Insert Style

X4GK

Insert Size Code

25030090079

Cutting Height (Decimal Inch)

0.8000

Manufacturer Grade

CP500

Maximum Depth Of Cut Range (Decimal Inch)

0.1500 to 0.2000

Product Overview
Grooving Insert: X4GK2503009-A0031LNMC CP500, Solid Carbide TiAlN & TiN Finish, Right Hand, 0.031" Cutting Width, 0.169" Max Depth, Series X4
