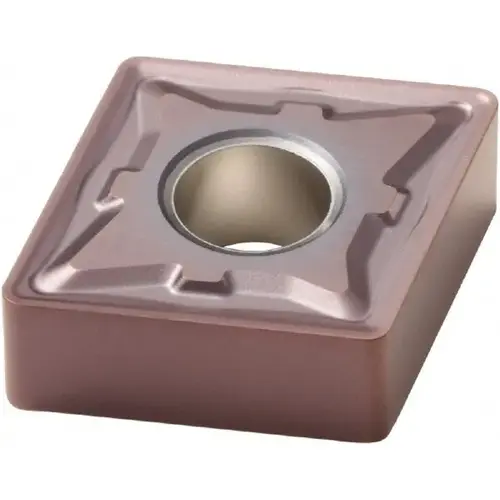

Seco 02825872 Turning Insert: CNMG 433-M3, Solid Carbide TiAlSiN

Item #: 02825872 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$23.06

/each
SAVE UP TO 2.31
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 47 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CNMG-M5

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlSiN

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

02825872

Material Grade

S05

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

80

Maximum Depth of Cut (Decimal Inch)

0.4606

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

M5

Insert Style

CNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2028

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Chip Breaker Operation

Roughing

Manufacturer Grade

TH1000

ISO Size Code

120412

Grade Characteristics

Special, Super Alloys (S) - High Wear-Resistance

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

433

ISO Insert Code

CNMG120412

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG120412-M5

ANSI Insert Code

CNMG433

Product Overview
Turning Insert: CNMG 433-M3, Solid Carbide TiAlSiN Coated, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series CNMG
