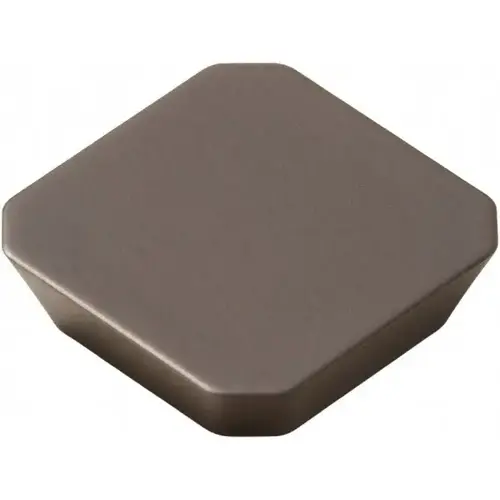

Seco 2827891-XCP10 Milling Insert: SEKN1203AFTN-M14, MK2050, Solid Carbide - pack of 10

Item #: 2827891-XCP10 by Seco

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Square

Cutting Edge Style

T-Land

Material Application

Cast Iron

ANSI Code

SEKN1203AFTN-M14

Number of Cutting Edges

4

Standards

ISO

Insert Material

Solid Carbide

Series

SEKN-12

Coating Process

PVD

Coating/Finish

TiSiN

Corner Radius (Decimal Inch)

0.0394

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

SEKN1203AFTN-M14

Material Grade

Medium Grain

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.1252

Thickness (Inch)

1/8

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Wedge Clamp

Maximum Depth of Cut (Decimal Inch)

0.3465

Multi-use Tool

Yes

Rake

Neutral

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

Square

Rake Angle

0

Chip Breaker

M14

Secondary Workpiece Material Code

P

Insert Style

SEKN

Insert Size Code

1203

Relief Angle

20

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Cutting Edge Effective Length (Decimal Inch)

0.5000

Manufacturer Grade

MK2050

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Single

Cutter Series Compatibility

R220.13-12

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Iso Code

SEKN1203AFTN-M14

Product Overview
Milling Insert: SEKN1203AFTN-M14, MK2050, Solid Carbide Coated, 1/8" Thick, 1/2" Wide
