Features
Flute Type
Helical
Shank Type
Straight-Cylindrical
Overall Length (mm)
6.00
Number of Flutes
4
Pitch
Normal
Chipbreaker
No
Length Type
Short
Cutting Direction
Right Hand
Series
JHP951
Variable Helix
No
Coating/Finish
SIRON-A
Coolant Through
No
Length Of Cut (Decimal Inch - 4 Decimals)
0.7087
Manufacturers Catalog Number
JHP951080D2C.0Z4-SIRA
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (mm)
8.00
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Helix Style
High
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.3150
Secondary Workpiece Material
Steel
Single Or Double End
Single
Variable Index
No
Length of Cut (mm)
18.00
Reach Length (mm)
18.00
Secondary Workpiece Material Code
P
Mill Diameter Tolerance
e7
Chamfer Angle
45
Mill Diameter (mm)
8.00
TIR Maximum (mm)
0.01
Chamfer Width (mm)
0.30
Chamfer Width (Decimal Inch)
0.0118
Shank Diameter Tolerance
h5
Chamfer Length (mm)
0.30
Product Overview

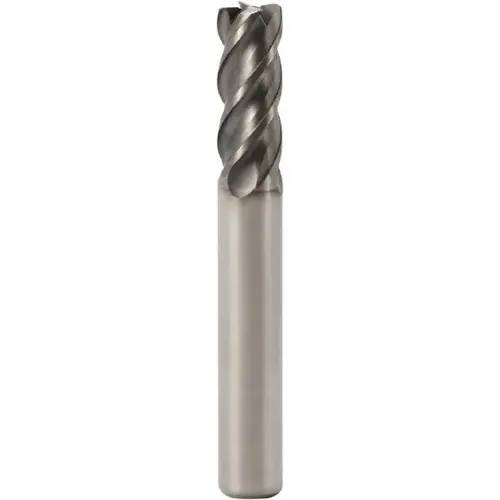

Corner Chamfer End Mill: 8 mm Dia, 18 mm LOC, 4 Flutes, 0.3 mm Chamfer Width, Solid Carbide 60 mm OAL, 8 mm Shank Dia, SIRON-A Coated, Centercutting
