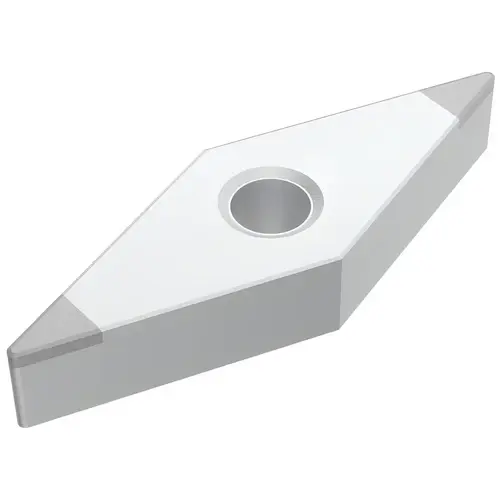

Turning Insert: VNGA330.5S-00420-L1-B, Polycrystalline Cubic Boron Nitride - pack of 2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2910963-XCP2 Turning Insert: VNGA330.5S-00420-L1-B, Polycrystalline Cubic Boron Nitride - pack of 2

Item #: 2910963-XCP2 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$282.31

/package
SAVE UP TO 28.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

35degree

Insert Material

Polycrystalline Cubic Boron Nitride (PCBN)

Series

VNGA-Flat Top

Coating Process

PCBN

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

02910963

Material Grade

H01

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.2598

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

35degree

Maximum Depth of Cut (Decimal Inch)

0.0200

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Super-alloys & Titanium

Tip Length (Decimal Inch)

0.1730

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/128

Insert Shape

Diamond 35

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

V

Chip Breaker

Flat Top

Secondary Workpiece Material Code

S

Insert Style

VNGA

Insert Size Code

330.5

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Back Turning

Manufacturer Grade

CBN010

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.7000 - 10.0000

Proprietary Coating Designation

Uncoated

Iso Code

VNGA160402S-01020-L1-B

Product Overview
Turning Insert: VNGA330.5S-00420-L1-B, Polycrystalline Cubic Boron Nitride Uncoated, Neutral, 3/8" Inscribed Circle, 0.008" Corner Radius, 35 degree Diamond, Series Secomax
