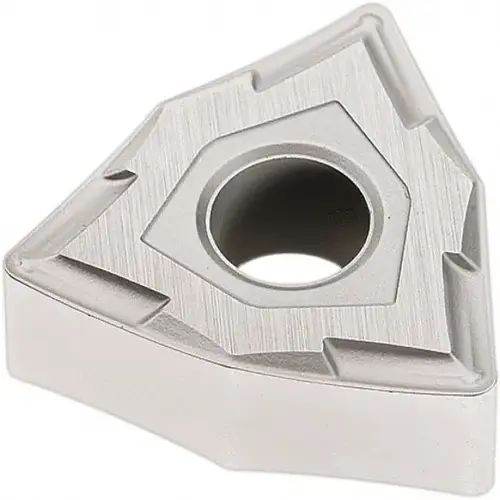

Turning Insert: WNMG431-MF2 TP2501, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 02959841 Turning Insert: WNMG431-MF2 TP2501, Solid Carbide TiCN

Item #: 02959841 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$32.39

/each
SAVE UP TO 3.24
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 208 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

WNMG-MF2

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

02959841

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

Duratomic

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6850

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.3346

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

Trigon

Clearance Code

N

Full Radius

No

Insert Shape Code

W

Chip Breaker

MF2

Secondary Workpiece Material Code

M

Insert Style

WNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2028

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

5.15

Manufacturer Grade

TP2501

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.6500 - 0.7000

Proprietary Coating Designation

Duratomic

Iso Code

WNMG080404-MF2

Product Overview
Turning Insert: WNMG431-MF2 TP2501, Solid Carbide Al2O3 Coated, Neutral, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Trigon, Series WNMG
