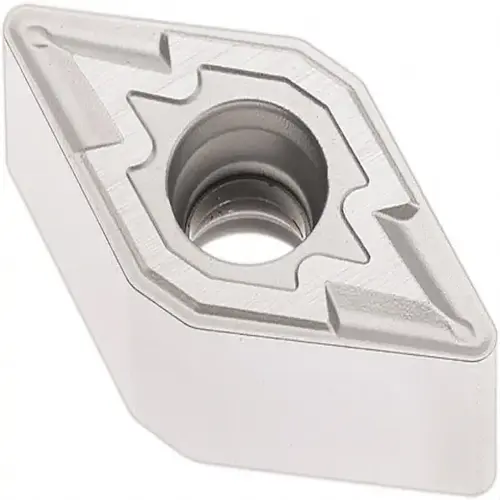

Seco 2959959-XCP10 Turning Insert: DNMU333-M3 TP1501, Carbide - pack of 10

Item #: 2959959-XCP10 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$183.75

/package
SAVE UP TO 18.38
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

DNMU110412-M3

Proprietary Coating Designation

Duratomic

Length Range (Decimal Inch)

0.7000 - 10.0000

Single or Multi Tipped

Multi Tipped

Manufacturer Grade

TP1501

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Multi-Use Application

Back Turning

Inscribed Circle (Inch)

3/8

Relief Angle

0

Hole Diameter (Decimal Inch)

0.1500

Tolerance Code

M

Insert Size Code

333

Insert Style

DNMU

Secondary Workpiece Material Code

K

Chip Breaker

M3

Insert Shape Code

D

Full Radius

No

Clearance Code

N

Insert Shape

Diamond 55

Corner Radius (Inch)

3/64

Inscribed Circle (Decimal Inch)

0.3750

Wiper Edge

No

Insert Hand

Neutral

Secondary Workpiece Material

Cast Iron

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.4094

Lead Angle

55degree

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1874

Insert Length (Decimal Inch)

0.9134

Insert Holding Method

Clamp

Coating Classification

Duratomic

Width (Inch)

3/8in

Width (Decimal Inch - 4 Decimals)

0.3750in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P10

Manufacturers Catalog Number

02959959

Corner Radius (Decimal Inch)

0.0472

Coating/Finish

TiCN

Coating Process

CVD

Series

DNMU-M3

Insert Material

Carbide

Included Angle

55degree

Standards

ANSI

Number of Cutting Edges

4

Cutting Edge Style

Chamfered & Honed

Product Overview
Turning Insert: DNMU333-M3 TP1501, Carbide TiCN, Al2O3 & Cr Coated, Neutral, 0.9134" Long, 3/8" Inscribed Circle, 0.0472" Corner Radius, 55 ° Diamond 550, Series DNMU-M3
