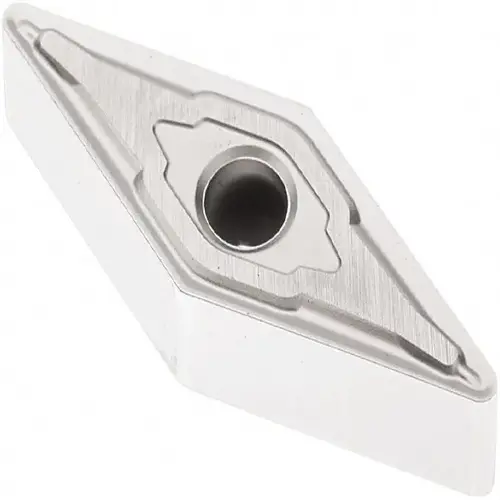

Seco 2959961 Turning Insert: VNMG331-M3 TP2501, Solid Carbide TiCN

Item #: 2959961 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$57.54

/each
SAVE UP TO 5.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 423 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

35degree

Insert Material

Carbide

Series

VNMG-M3

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

02959961

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Width (mm - 2 Decimals)

16.60

Coating Classification

Duratomic

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.3070

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

35degree

Maximum Depth of Cut (Decimal Inch)

0.6142

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

Diamond 35

Clearance Code

N

Full Radius

No

Insert Shape Code

V

Chip Breaker

M3

Secondary Workpiece Material Code

M

Insert Style

VNMG

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Back Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Manufacturer Grade

TP2501

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.7000 - 10.0000

Proprietary Coating Designation

Duratomic

Iso Code

VNMG160404-M3

Product Overview
Turning Insert: VNMG331-M3 TP2501, Solid Carbide Al2O3 Coated, Neutral, 0.173" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series VNMG
