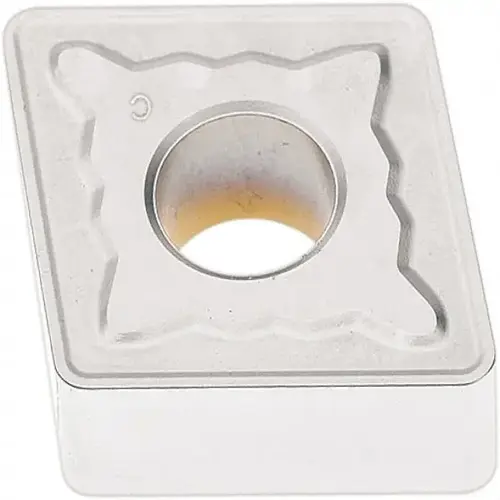

Turning Insert: CNMG643-MR7 TP2501, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2960476 Turning Insert: CNMG643-MR7 TP2501, Solid Carbide TiCN

Item #: 2960476 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$68.23

/each
SAVE UP TO 6.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 62 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-MR7

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

02960476

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.7500in

Width (Inch)

3/4in

Width (mm - 2 Decimals)

19.30

Coating Classification

Duratomic

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7598

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.7126

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Corner Radius (Inch)

3/64

Insert Shape

Diamond 80

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

MR7

Secondary Workpiece Material Code

M

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3118

Relief Angle

0

Inscribed Circle (Inch)

3/4

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

7.92

Manufacturer Grade

TP2501

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.7000 - 10.0000

Proprietary Coating Designation

Duratomic

Iso Code

CNMG190612-MR7

Product Overview
Turning Insert: CNMG643-MR7 TP2501, Solid Carbide Al2O3 Coated, Neutral, 0.313" Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series CNMG
