Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Included Angle
35degree
Insert Material
Carbide
Series
VBMT-F1
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
02960883
Material Grade
P10
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2500in
Width (Inch)
1/4in
Coating Classification
Duratomic
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.8716
Insert Thickness (Decimal Inch)
0.0937
Insert Thickness (Inch)
3/32
Lead Angle
35degree
Maximum Depth of Cut (Decimal Inch)
0.4173
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Corner Radius (Inch)
1/64
Insert Shape
Diamond 35
Clearance Code
B
Full Radius
No
Insert Shape Code
V
Chip Breaker
F1
Secondary Workpiece Material Code
M
Insert Style
VBMT
Insert Size Code
21.51
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1142
Relief Angle
5
Inscribed Circle (Inch)
1/4
Multi-Use Application
Back Turning
Hole Diameter (Mm) ( - 0 Decimals)
2.90
Manufacturer Grade
TP2501
Single or Multi Tipped
Multi Tipped
Length Range (Decimal Inch)
0.7000 - 10.0000
Proprietary Coating Designation
Duratomic
Iso Code
VBMT110204-F1
Product Overview

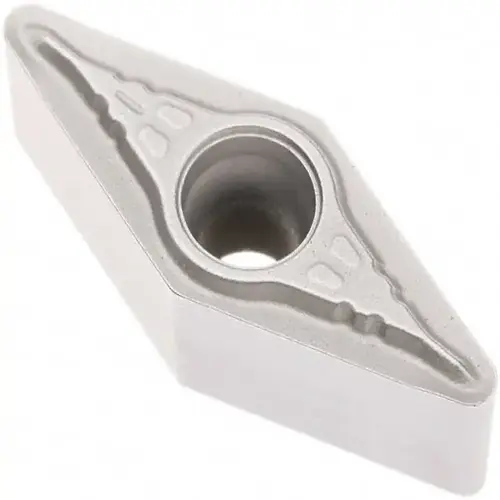

Turning Insert: VBMT21.51-F1 TP2501, Solid Carbide Al2O3 Coated, Neutral, 1/4" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series VBMT
