Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
2
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DCMT-M3
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
02960916
Material Grade
P10
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
Duratomic
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.9134
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Lead Angle
55degree
Maximum Depth of Cut (Decimal Inch)
0.3661
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Diamond 55
Clearance Code
C
Full Radius
No
Insert Shape Code
D
Chip Breaker
M3
Secondary Workpiece Material Code
M
Insert Style
DCMT
Insert Size Code
32.52
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1772
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Back Turning
Hole Diameter (Mm) ( - 0 Decimals)
4.50
Manufacturer Grade
TP2501
Single or Multi Tipped
Multi Tipped
Length Range (Decimal Inch)
0.7000 - 10.0000
Proprietary Coating Designation
Duratomic
Iso Code
DCMT11T308-M3
Product Overview

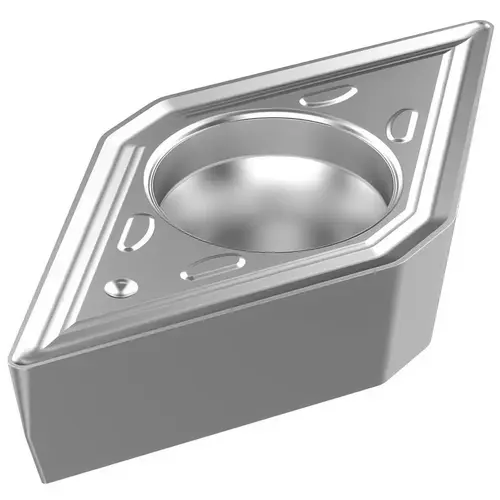

Turning Insert: DCMT32.52-M3 TP2501, Solid Carbide Al2O3 Coated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond
